Product Made in Japan
Manufacturer: Kanetec
Model: MP Series: MP-1/MP – 2/MP – 3

Application

The Magpad is a device to prevent wire breakage by heat due to aerial discharge. It protects wire electrodes of wire electric discharge machines from scattering of coolant which is likely to occur at the start of discharging. This Magpad can also be used to prevent dislocation or falling of cut-out pieces at the start or end of cutting.

Features

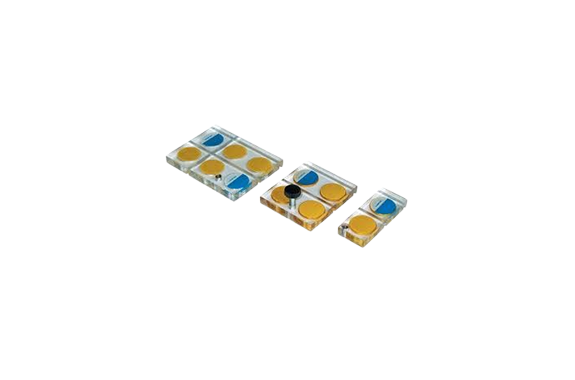

A transparent acrylic plate with powerful magnets embedded constitutes the Magpad. It has strong holding power and enables it to set a wire while monitoring its position visually.
You don’t need a mechanical clamp. You can attach and detach efficiently and safely without risking damage to the workpieces.
Various models are available to suit any workpiece shape.
There is no fear of rusting and the magnetic force is semi-permanent. The Magpad withstands repeated use and therefore is very economical.

M5 screws can be used to detach the Magpad from the workpiece.

Specifications

The holding power is based on a test piece of SS400, 20 mm thick, ground surface.
