Japan, Kansai
Kansai SWS Wide Shackle(Straight Type)
Product Made in Japan
Manufacturer: Kansai
Model: SWS
SWS Shackle (Straight Type)
Characteristics
Based on JIS-V class, we have completed an ultra-lightweight wide shackle with the aim of making it lighter and easier to use. This is a KANSAI original. The weight is as light as JIS-V class, the test load is double the concentrated load, and the safety factor is over 6 times. It reduces back pain and delivers the best impression to those who use it.
Working load…35t~125t
Features
It’s light! Good workability! !
Comparing a shackle with a working load of 50 tons…
The weight of the JIS BB-90 shackle (M class) is 152kg.The
weight of the lightweight shackle RB-50ton is 94kg.The
weight of the ultra-lightweight special wide shackle is 35.9kg! !

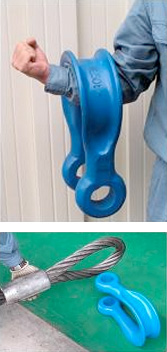

The main unit alone weighs around 23kg, so it can be lifted with one hand. (Top photo)
It is incomparably lighter than conventional shackles, and work efficiency is surprisingly improved.
Wire life is also significantly extended.
In addition, since work can be done with the shackle in the upright position, slinging can now be done by one person, whereas previously it required two people. (Photo below)
Specifications
Dimension table (unit = m/m)
*Due to the forging process, there may be a slight error in the width of the top.
Test load test is twice the load. Safety factor of 5 times or more.
