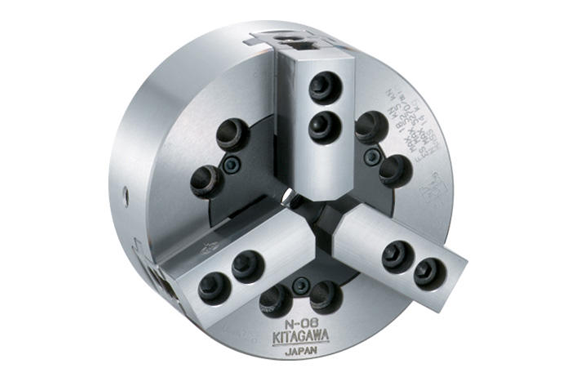

KITAGAWA N series Standard Chuck

Made in Japan

Manufacturer: KITAGAWA

Model: N series

Feature:

Closed centre standard chuck

*CE correspondence

Specification

Model N-04 N-05 N-06 N-08 N-10
Through-hole (mm)
Gripping Range (mm) Max. 110 135 165 210 254
Min. 6 16 15 23 24
Jaw Stroke (Diameter) (mm) 6.4 6.4 8.5 8.8 8.8
Plunger Stroke (mm) 15 15 20 21 25
Max. Draw Bar Pull Force (kN) 8.2 8.2 18 25 29
Max. Static Gripping Force (kN) 22.8 25.2 52.5 75 108
Max. Speed (min-1) 6000 5500 5270 4760 4010
Moment of Inertia (kg・m2) 0.008 0.015 0.045 0.138 0.3
Net Weight (kg)
(with Soft Top Jaws)
4.1 6.2 13 25 37
Matching Cylinder Hydraulic Y0715R Y0715R Y1020R Y1225R Y1225R
Pneumatic AY1315R AY1315R AY1720R AY2225R AY2225R
Matching Soft Jaws
Note) Jaw-mounting bolts are not included.
Standard
Extra Tall
Standard
Extra Tall
Standard
Extra Tall
Standard
Extra Tall
Standard
Extra Tall
Matching Hard Jaws
Note) Jaw-mounting bolts are not included.
HB04N1 HB05C1 HB06A1
HB06B1
HB08A1 HB10A1
Model N-12 N-15 N-18 N-21 N-24
Through-hole (mm)
Gripping Range (mm) Max. 304 381 450 530 610
Min. 26 72 133 69 152
Jaw Stroke (Diameter) (mm) 10.5 16 16 16 16
Plunger Stroke (mm) 30 35 35 35 35
Max. Draw Bar Pull Force (kN) 41 82 82 82 82
Max. Static Gripping Force (kN) 156 249 249 273 273
Max. Speed (min-1) 3380 3040 2710 1940 1760
Moment of Inertia (kg・m2) 0.725 1.9 3.3 7.1 12.0
Net Weight (kg)
(with Soft Top Jaws)
57.3 101 126 198 252
Matching Cylinder Hydraulic Y1530R Y2035R Y2035R Y2035R Y2035R
Pneumatic
Matching Soft Jaw
Note) Jaw-mounting bolts are not included.
Standard
Extra Tall
Standard
Extra Tall
Standard
Extra Tall
Standard
Extra Tall
Standard
Extra Tall
Matching Hard Jaws
Note) Jaw-mounting bolts are not included.
HB12B1 HB15N1 HB15N1 HB18B2 HB18B2
