Kitagawa Corporation.

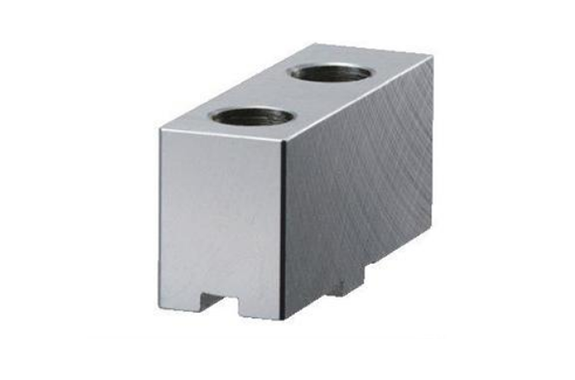

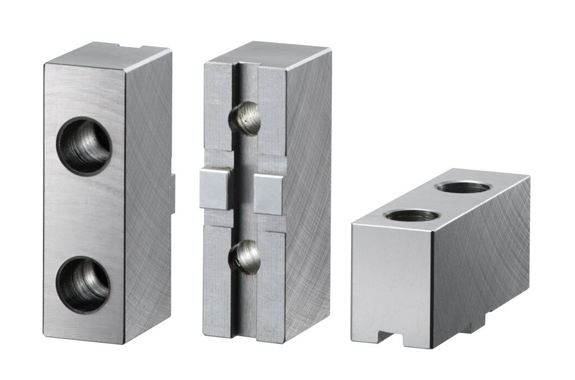

Kitagawa SBS series Chuck Parts
Manufacturer: Kitagawa Corporation.
Model: SBS series
Feature:
Description of Model SBS06
Number: Chuck size
Indicates this is a soft jaw of scroll chuck type
Combination Table for Soft Jaws
| Soft Jaw Type | Adaptive Chuck Model |
|---|---|
| SBS03 | SC-3F |
| SBS04 | SC-4F |
| SBS05 | SC-5F |
| SBS06 | JN06T, JN06RA5 |
| SBS07 | JN07T, JN07RA5, JN08RA6, JT07 |
| SBS09 | JN09T, JN09RA6, JT09 |
| SBS10 | JN10T, JN10RA6 (8) |
| SBS12 | JN12T, JN12RA6 (8) |

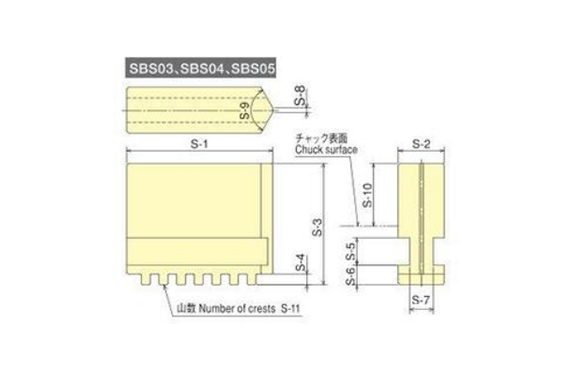

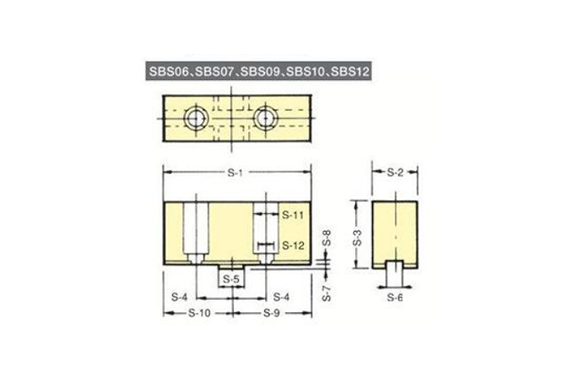

Dimensions
| TYPE | Chuck Size | S-1 | S-2 | S-3 | S-4 | S-5 | S-6 | S-7 | S-8 | S-9 | S-10 | S-11 | S-12 | Mounting Bolt |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBS03 | 3 | 35 | 11 | 29 | 2.5 | 6.55 | 4.7 | 5.7 | 1.5 | 6.5 | 7 | 3 | 6 | M6×20 |
| SBS04 | 4 | 42 | 14 | 34.5 | 3.5 | 8.6 | 6.5 | 6.5 | 1.5 | 8.5 | 9 | 3 | 6 | M8×20 |
| SBS05 | 5 | 50 | 16 | 40 | 4 | 9.8 | 7.2 | 7.2 | 2 | 10 | 10 | 3 | 6 | M8×25 |
| SBS06 | 6 | 62 | 27 | 48 | 22.225 | 12.68 | 7.94 | 3 | 3 | 3.5 | 14 | 8.5 | 20 | M10×20 |
| SBS07 | 7 | 72 | 30 | 54 | 26.99 | 12.7 | 9.5 | 3 | 3 | 3.5 | 16 | 9 | 25 | M10×25 |
| SBS09 | 9 | 90 | 35 | 66 | 26.99 | 12.7 | 9.5 | 3 | 3 | 3.5 | 16 | 9 | 30 | M12×25 |
| SBS10 | 10 | 105 | 40 | 81 | 26.99 | 12.7 | 9.5 | 3 | 3 | 5.5 | 19 | 13 | 35 | M12×25 |
| SBS12 | 12 | 125 | 50 | 94 | 31.75 | 19.05 | 12.7 | 3 | 3 | 5.5 | 19 | 13 | 40 | M12×25 |
