Kitz EA100/200-TLE Type EA Electric Actuators/Class 10K Long Neck Bronze Ball Valves
Product made in Japan
Manufacturer: Kitz
Model: EA100/200-TLE
Actuator size: 1 and 1.5
Valve size: 1／2″ to 1″ (Standard bore)

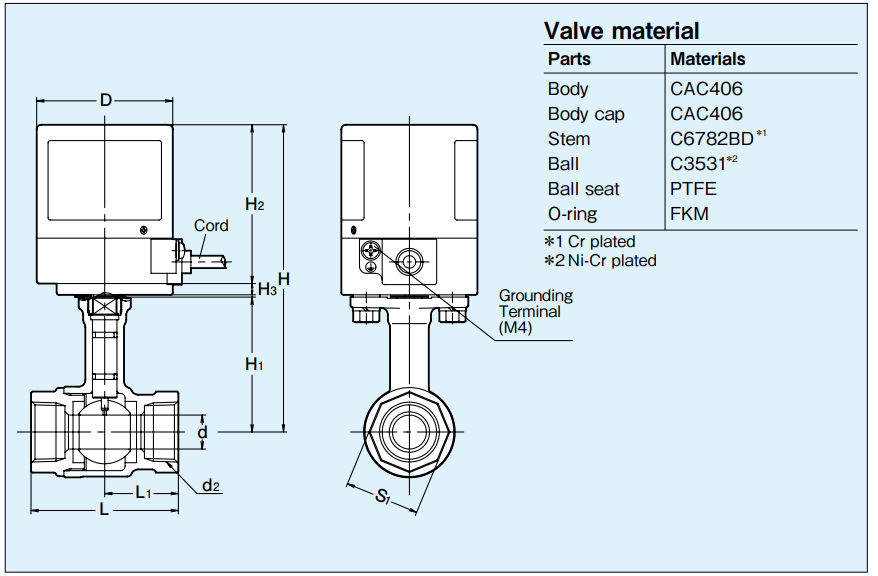

Dimensions
| Valve Size (inch) | d | d₁ | H | H₁ | L | L₁ | S₁ | Actuator | |||
| H₂ | H₃ | D | Type | ||||||||
| 1/2 | 10 | Rc1/2 | 132 | 56 | 56 | 28 | 27 | 70 | 5 | 60 | EA100/200-1 |
| 3/4 | 15 | Rc3/4 | 136.5 | 60.5 | 65 | 32.5 | 33 | EA100/200-1.5 | |||
| 1 | 20 | Rc1 | 140 | 64 | 78 | 39 | 41 | ||||
Actuator size: 2
Valve size:1 1／4″ to 2″ (Standard bore)
Dimensions
| Valve Size (inch) | d | d₁ | H | H₁ | H₂ | L | L₁ | S₁ | Actuator | ||||||
| H₃ | E₁ | E₂ | W₁ | W₂ | S | Type | |||||||||
| 1 1/4 | 25 | Rc1 1/4 | 163 | 80 | – | 86 | 43 | 51 | 82 | 54.5 | 30 | 59 | 31.5 | 5.5 | EA100/200-2 |
| 1 1/2 | 32 | Rc1 1/2 | 166 | 83 | 53.5 | 96 | 48 | 58 | |||||||
| 2 | 40 | Rc2 | 173 | 90 | 60 | 109 | 54.5 | 71 | |||||||
