KOFLOC Corp.
KOFLOC M Series (MOX) Small Oxygen Gas Generator
Manufacturer: KOFLOC Corp.
Model: M series (MOX)
Gas Generators
We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.
O₂ Gas generators
The oxygen gas generator supplies high-purity oxygen gas (90% or higher) by extracting oxygen gas from the air. As compared with methods using cylinders or liquid oxygen, this product, which enables users to obtain oxygen gas onsite, can save the cost and effort of management and operation, and reduce CO₂ emissions associated with transportation.

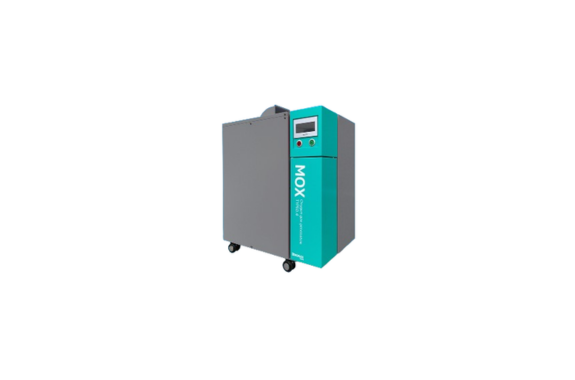

M Series(MOX)
The lineup of generating volumes includes small-sized oxygen gas generators of 4 NL/min and 8 NL/min.
With a small-sized compressor built-in, it is possible to install them wherever there is an electrical outlet of AC100V.
With no need to replace oxygen gas cylinders, this is used widely at universities, laboratories, and others places.
* Class-2 pressure vessels specified in High Pressure Gas Safety Act are out of scope.
Specifications
| TYPE | MOX-0.4 II | MOX-0.8 II | |
|---|---|---|---|
| Purity | % | ≥ 90 | |
| Generating Volume*1 | NL/min | 4 | 8 |
| Pressure | MPa | 0.1 | 0.1 |
| Device Dimensions | mm | 390 × 600 × 620 or 600 × 390 × 620 | 430 × 700 × 800 or 700 × 430 × 800 |
| Device Weight (Approx.) | kg | 70 | 106 |
| Electricity Consumption | kW | 0.4 | 0.8 |
| Power Supply Voltage | V | AC100 1Φ 50/60Hz | |
*1 Values obtained under environmental conditions of 20°C surrounding temperature and 60% relative humidity (RH) are converted for atmospheric pressure of 0°C. The amount of gas that can be produced may decrease due to surrounding temperature and humidity.
* For overseas specifications or special specifications not listed in our catalogue, please contact relevant staff at our company.
* Product improvements may lead to specification changes.
