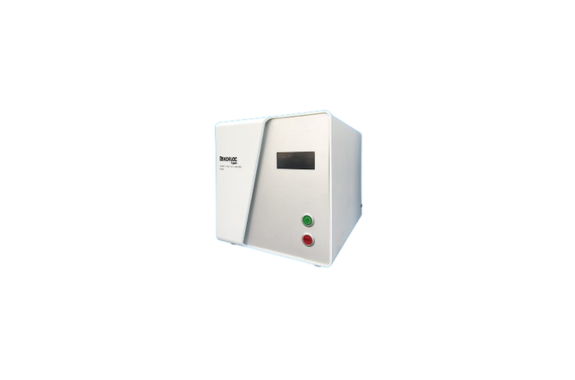

KOFLOC Mini-CUBE NCP Or NCPW Series (MOXS-NCP Or NCPW) Compact Oxygen Gas Generator
Manufacturer: KOFLOC Corp.
Model: Mini-CUBE NCP/NCPW series (MOXS-NCP/NCPW)
Gas Generators
We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.
O₂ Gas generators
The oxygen gas generator supplies high-purity oxygen gas (90% or higher) by extracting oxygen gas from the air. As compared with methods using cylinders or liquid oxygen, this product, which enables users to obtain oxygen gas onsite, can save the cost and effort of management and operation, and reduce CO₂ emissions associated with transportation.
Mini-CUBE NCP/NCPW Series(MOXS-NCP/NCPW)
The lineup of generators includes desk-top oxygen gas generators of 2 NL/min and 3 NL/min.
Small-sized compressor built-in and air supply types are available, and it is possible to install them on a desk as long as there is power of AC 100-240 V.
There are also W type items among air supply types.
Specifications
| TYPE | MOXS-NCP | MOXS-NCPW | |
|---|---|---|---|
| Purity | % | ≥ 90 | |
| Generating Volume*1 | NL/min | 0.2–2 | 3 |
| Pressure | MPa | 0.1 | |
| Dew Point*2 | °C | ≤ -55 (at 2 NL/min) | |
| Surrounding Temperature / Humidity | °C / % | 5–35°C / 10–80%RH | |
| Device Dimensions | mm | 310 × 270 × 310 | 310 × 392 × 310 |
| Device Weight (Approx.) | kg | 18 | 23 |
| Sound Level | dB | 50 | 55 |
| Electricity Consumption | kW | 0.1 | 0.035 |
| Power Supply Voltage | V | AC100–240 1Φ 50/60Hz | |
| Energy Saving Operation | × | × | |
| Supply Air Conditions | 0.5–0.69 MPa ≥ 15 NL/min Max 27 NL/min Oil-Free Dry Air | 0.5–0.69 MPa ≥ 55 NL/min Oil-Free Dry Air | |
*1 Values obtained under environmental conditions of 20°C surrounding temperature and 60% relative humidity (RH) are converted for atmospheric pressure of 0°C. The amount of gas that can be produced may decrease due to surrounding temperature and humidity.
*2 The dew point is atmospheric dew point after stabilization.
* For overseas specifications or special specifications not listed in our catalogue, please contact relevant staff at our company.
* Product improvements may lead to specification changes.
