This system supports initialization without any external input, and it uses an initial setting support circuit to simplify setup. As a result, users can start operation quickly and reduce commissioning time. Moreover, the design ensures smooth compatibility with proportional control valves in the KFPV050 and 300 series. Therefore, the system delivers reliable integration, improved efficiency, and stable control performance across a wide range of applications.
- Home
- Products
- Koganei Controller For Control Valves KFPC1 For Proportional Control Valves KFPV050 And KFPV300 Series
KOGANEI CORPORATION

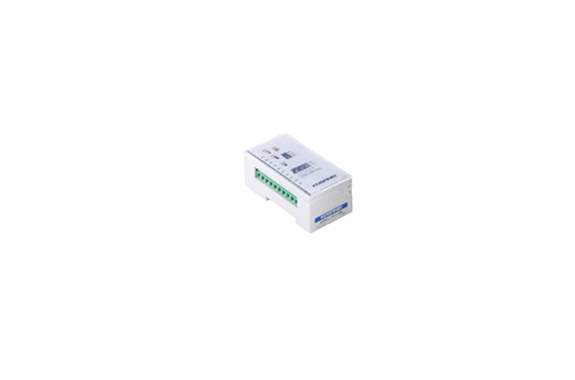

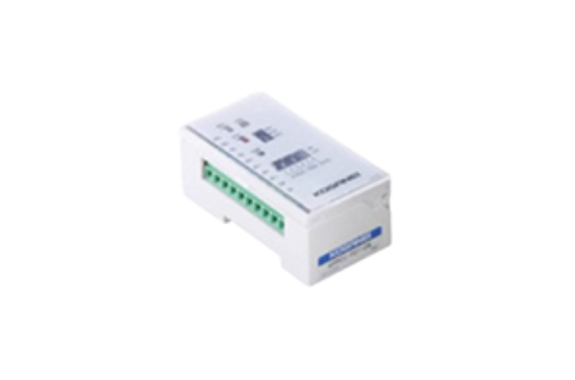

Koganei Controller For Control Valves KFPC1 For Proportional Control Valves KFPV050 And KFPV300 Series

Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Model | KFPC1-F07-DN 24 VDC | ||
| Mounting methods | DIN rail mounting | ||
| Signal input | 4 ~ 20 mA | 0 ~ 10 V | |
| Input impedance | Ω | 220 | 1.2M |
| Power supply voltage | 24 VDC ±10% | ||
| Valve control signal | PWM (pulse width modulation) | ||
| Ambient temperature range (ambient atmosphere) | °C [°F] | 0 ~ 50 [32 ~ 122] (non-condensation) | |
| Maximum allowable load current | A | 1.1 | |
| Power consumption (control circuit) | W | 0.55 | |
| Monitor signal | Directly proportional to solenoid current 1 mV = 1 mA | ||
| RAMP response time | s | 0 ~ 10 | |
