In addition to low particle generation, strong solution replacement characteristics, and effective bubble removal, the tube diaphragm pump delivers faster response and superior flow rate stability beyond what conventional plastic pumps achieve. As a result, the system maintains smooth and predictable operation under a wide range of conditions. Moreover, the improved response supports precise control during dynamic processes, which enhances overall dispensing accuracy. Consequently, the pump enables constant dispensing and a stable flow rate even during microscopic discharge applications, ensuring reliable performance in high precision manufacturing environments.
KOGANEI CORPORATION

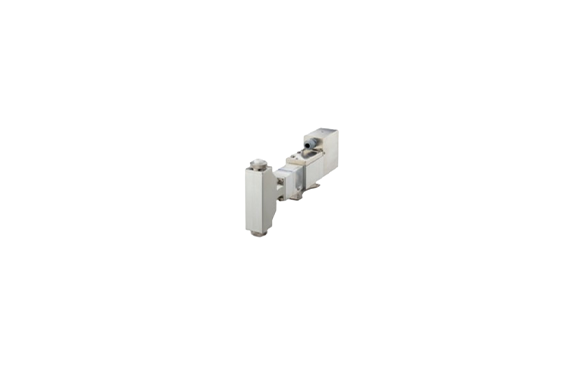

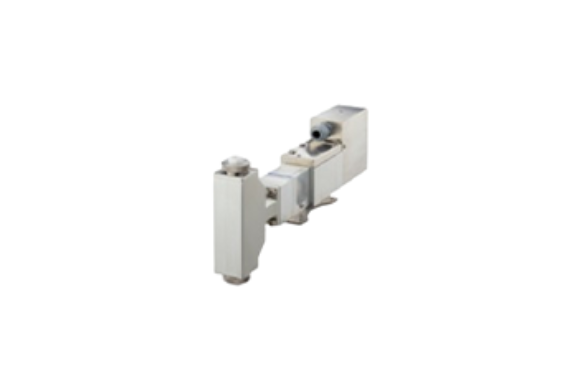

Koganei Electric RT Pump F-EPR Series

Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Model | F-EPR05-1W |
| Dispensing volume | 0.1–5 mL |
| Maximum dispensing pressure | 0.1 MPa |
| Allowable maximum vacuum pressure | −0.02 MPa |
| Maximum dispensing flow rate | 4 mL/s |
| Maximum suction flow rate | 4 mL/s |
| Proof pressure | 0.5 MPa |
