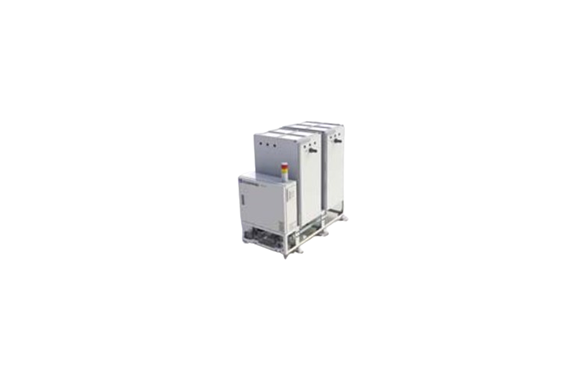

Depending on the heat load size, the system allows selection of multiple electrolysis tanks connected in series, which improves scalability and flexibility. As a result, users can easily increase the number of tanks to match changing capacity requirements. Moreover, split shipment simplifies installation and transportation, so handling becomes faster and more efficient. In addition, this approach reduces installation complexity, and it significantly lowers overall installation costs while maintaining reliable system performance.
Specifications
| Item | Name | Device main unit (1 tank to 4 tanks) | Electrolysis tank for expansion | Junction terminal box | |||
| Model | DBSS50A-21W | DBSS50A-22W | DBSS50A-23W | DBSS50A-24W | DBSS50A-25W | DBSS50A-26W | |
| Outer dimensions | mm [in] | 700 × 600 × 1200 [27.6 × 23.6 × 47] | 1200 × 600 × 1200 [47 × 23.6 × 47] | 1700 × 600 × 1200 [67 × 23.6 × 47] | 2200 × 600 × 1200 [87 × 23.6 × 47] | 500 × 600 × 1200 [19.7 × 23.6 × 47] | 235 × 78 × 190 [9.3 × 3.071 × 7.5] |
| Dry mass | kg [lb] | 130 [286.6] | 190 [418.9] | 250 [551.2] | 310 [683.4] | 60 [132.277] | 1 [2.205] |
| Electrolysis tank | Capacity ℓ | Total water capacity 160 | Total water capacity 320 | Total water capacity 480 | Total water capacity 640 | Total water capacity 160 | – |
| Breakdown | (Electrolysis tank 105, setting tank 55 = 160) ×1 tank | (Electrolysis tank 105, setting tank 55 = 160) ×2 tanks | (Electrolysis tank 105, setting tank 55 = 160) ×3 tanks | (Electrolysis tank 105, setting tank 55 = 160) ×4 tanks | (Electrolysis tank 105, setting tank 55 = 160) tank 55 = 160 | – | |
| Maximum processing flow rates | To 5 ℓ/min (0.3 m³/hr) | To 10 ℓ/min (0.6 m³/hr) | To 15 ℓ/min (0.9 m³/hr) | To 20 ℓ/min (1.2 m³/hr) | To 5 ℓ/min (0.3 m³/hr) | – | |
| Scale and corrosive element removal volume* | kg [lb]/365 days | To 25 [55.116] | To 50 [110.231] | To 75 [165.347] | To 100 [220.5] | – | – |
| Drained amount | ℓ/day | 160 | 320 | 480 | 640 | 160 | – |
| Main unit connection port | IN connection port diameter | Rc 1-1/2 inch 15A | – | ||||
| Drain connection port diameter | Rc 1-1/2 inch 40A | – | |||||
| OUT connection port diameter | (1-1/4-inch 32A barb) × 1 | (1-1/4-inch 32A barb) × 2 | (1-1/4-inch 32A barb) × 3 | (1-1/4-inch 32A barb) × 4 | (1-1/4-inch 32A barb) × 1 | – | |
| Input current | Single phase 200 VAC 50/60 Hz | – | |||||
| Consumption power | kW | 0.3 | 0.5 | 0.5 | 0.6 | – | – |
| Paint color | 5Y7/1 beige | – | |||||
| Protection level | IP-44 compliant (outdoor specifications) | IP-44 compliant (outdoor specifications) | |||||
| Alarm output | ① Electrode plate life * Alarm generation: Lights and device operates ② Valve abnormality (drain discharge, IN side supply water abnormality) ③ Power supply abnormality * Alarm generation, device stops | – | |||||
| Supported cleaning towers | To 150RT | 150 to 300RT | 300 to 450RT | 450 to 600RT | To 150RT | – | |
