Manufacturer: KOGANEI CORPORATION
Features

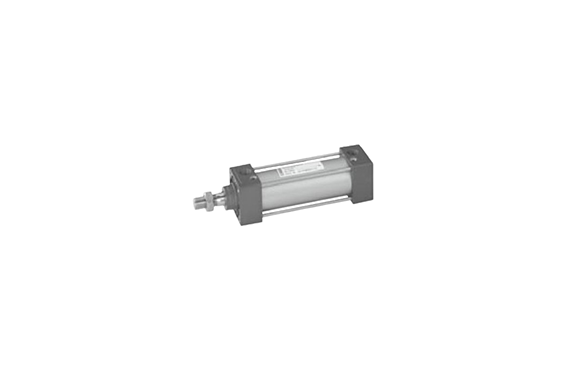

The DYNA cylinders, compact and lightweight mid-sized actuators compatible with ISO standards, offer a wide range of configurations and mounting types to meet various application requirements in a flexible manner. Moreover, the new cushion needle works together with the floating seal, and therefore the products become more user-friendly; as a result, users can handle them more easily, while overall usability and performance also improve.
Specifications
| Item | Bore size mm [in.] |
|---|
| 40 [1.575] | 50 [1.969] | 63 [2.480] | 80 [3.150] | 100 [3.940] |
|---|
| Operation type | Double acting type |
| Media | Air |
| Mounting type | Basic type, Foot type, Axial foot type, Rod side flange type,
Head side flange type, Clevis type, Pivot type, Trunnion type |
Operating pressure range
MPa [psi.] | 0.1～1.0 [15～145] |
Proof pressure
MPa [psi.] | 1.5 [218] |
Operating temperature range
°C [°F] | −10～70 [14～158] (Freezing prohibited, With sensor is 0～60 [32～140].) |
Operating speed range
mm/s [in./sec.] | 50～500 [2.0～19.7] |
| Cushion | Variable cushion at both ends of stroke |
Cushion stroke
mm [in.] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 25 [0.984] | 25 [0.984] |
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 (ISO VG32) or equivalent.) |
| Non-rotating accuracy | ±1° | ±0.8° | ±0.8° | ±0.5° | ±0.5° |
Allowable torque
N·m [ft·lbf] | 1 [0.74] | 3.4 [2.51] | 3.4 [2.51] | 10 [7.38] | — |
| Port size | Rc 1/4 | Rc 3/8 | Rc 3/8 | Rc 1/2 | Rc 1/2 |
