The handy surface potential meter works as a portable digital display instrument, and it accurately measures the surface potential of charged objects without any contact. As a result, users can perform fast and reliable measurements while avoiding damage to sensitive surfaces. Moreover, the clear digital display improves readability, which supports quick decision making during inspections. In addition, the compact and lightweight design allows easy daily use in various environments. Therefore, this meter supports efficient, day-to-day static electricity management across production, maintenance, and quality control tasks.
KOGANEI CORPORATION

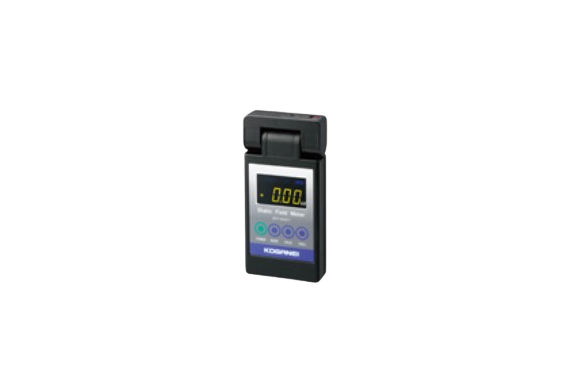

Koganei Electrostatic Potential Sensor DTY-KVS11

Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Model | DTY-KVS11 |
| Measurement potential ranges | Normal mode: 0.00 to ±19.99 kV I.B mode: 0.000 to ±1.999 kV |
| Signal sensing method | Vibration chopper system |
| Display data refresh frequency | 0.5 seconds |
| Measurement accuracy | ±10% rdg, ±2 digit |
| Measurement distance | 30 mm [1.18 in] (Space between item being measured and detector) |
| Measurement distance adjustment | Red LED light focusing system (Light mark focal distance: 30 mm [1.18 in]) |
| Head rotation angle | 180° (stops at each 45°, 5 positions) |
| Mode switching | Mode button switching |
| Battery check | Remaining level indicator on the display |
| Power | 6P 9VD alkaline square battery |
| Storage temperature, humidity range | 0 to 40°C, 20 to 70% RH (non-condensation) |
| Mass | 160 g [5.64 oz] |
| Accessories | 9V battery, soft case, grounding cable, strap |
