KOGANEI CORPORATION

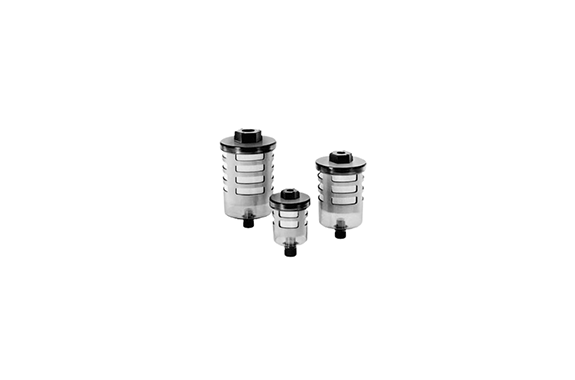

Koganei Exhaust Filters Rc1/4 to Rc1
Manufacturer: KOGANEI CORPORATION
Features
A compact type of air filter that excels in silencing and reducing exhaust back pressure. It also prevents foreign matter from entering through the exhaust port. Moreover, this filter effectively removes oil from the exhaust and reduces noise, ultimately creating a cleaner and quieter environment.
Specifications
| Item | Model | EF300 | EF600 | EF800 |
|---|---|---|---|---|
| Port size | Rc | 1/4, 3/8 | 3/8, 1/2 | 3/4, 1 |
| Maximum processed flow rate | ℓ/min [ft³/min] (ANR) | 300 [10.6] | 1000 [35.3] | 3000 [106] |
| Oil mist recovery rate | % | 99.9 or more | 99.9 or more | 99.9 or more |
| Filtration rating | µm | 0.3 | 0.3 | 0.3 |
| Mass | kg [lb] | 0.22 [0.49] | 0.39 [0.86] | 0.55 [1.21] |
| Attachments | Bracket | Standard attachments | Standard attachments | Standard attachments |
