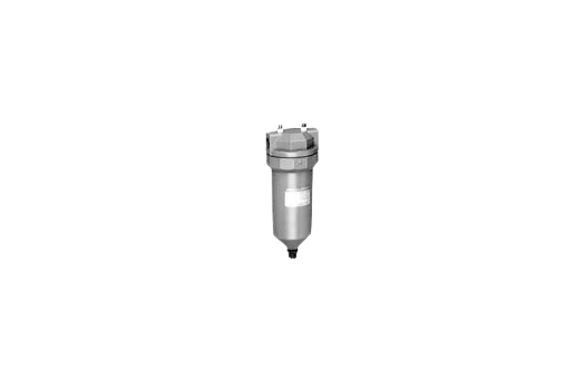

Koganei Micro Mist Filters KMF Series
Manufacturer: KOGANEI CORPORATION
Features
This filter effectively eliminates solid particles larger than 0.3µm, ensuring that the air remains free from harmful debris. Additionally, it removes residual oil aerosols with concentrations exceeding 0.5ppm/mg, providing cleaner air for sensitive systems. To achieve the best results, install the filter at the inlet side of lines where oil intrusion must be prevented. Alternatively, it can also be placed behind air dryers to effectively block oil and microscopic particles from contaminating the airflow.
Specifications
| Item | Model | KMF-75 | KMF-150 |
|---|---|---|---|
| Media | Air | ||
| Operating pressure range | MPa [psi] | 0.2～0.97 [29～141] | 0.29～1.1 [29～141] |
| Operating temperature range | °C [°F] | 5～60 [41～140] | 5～60 [41～140] |
| Intake air temperature range | °C [°F] | 5～60 [41～140] | 5～60 [41～140] |
| Connection port | IN, OUT Rc3/8 | Differential pressure gauge connection port Rc1/8 | |
| Drain port | Rc1/4 (outer diameter φ16 [0.63in.]) | Rc1/4 (outer diameter φ16 [0.63in.]) | |
| Volume of processed air* | ℓ/min [ft³/min] (ANR) | 0.33 [11.6] | 1.10 [35.3] |
| Filtering rating | µm | 0.3 | |
| Filtering efficiency | % | 99.9999 | |
| Residual oil | ppm mg/m³ | 0.5 | |
| Pressure drop | MPa [psi] | Initial stage: 0.01 [1.5] | Initial stage: 0.01 [1.5] |
| Element operating life | Change at 3000 hours or one year whichever comes first | ||
| External dimensions | Dimension between flats × total length | 90 × 238 [3.54 × 9.37] | 90 × 238 [3.54 × 9.37] |
| Mass | kg [lb.] | 1.0 [2.2] | 1.0 [2.2] |
| Painting (Munsell No.) | Baked finish with acrylic resin (7.5GY5/2) | ||
| Filter element | Model | EM-75-A | EM-150-A |
| Quantity | 1 | 1 | |
