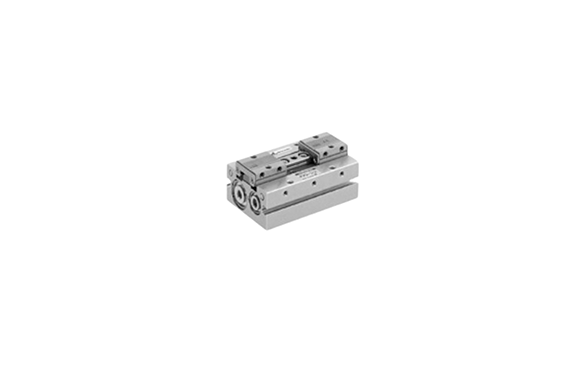

Koganei Flat Type Air Hands Asynchronous Type
Manufacturer: KOGANEI CORPORATION
Features
This model supports a cylinder bore range from 8 to 12 mm, making it ideal for compact automation systems that require precise motion control. In addition, the levers are independently driven by cylinders with different bore sizes, allowing the lever with the higher gripping force to function as the fixed gripping reference for improved stability. Moreover, the linear guide enhances overall rigidity and enables a thin body design, ensuring accurate operation and reliable gripping performance across various industrial applications.
Specifications
| Item | Basic model | |||
|---|---|---|---|---|
| AFDPGH-8-JA | AFDPGH-8-JB | AFDPGH-12-JA | AFDPGH-12-JB | |
| Cylinder bore size mm [in.] | 8×12 [0.315×0.472] | 8×12 [0.315×0.472] | 12×16 [0.472×0.630] | 12×16 [0.472×0.630] |
| Operation type | Double acting type | |||
| Media | Air | |||
| Operating pressure range MPa [psi] | 0.2–0.7 [29–102] | 0.2–0.7 [29–102] | 0.15–0.7 [22–102] | 0.15–0.7 [22–102] |
| Proof pressure MPa [psi] | 1.05 [152] | |||
| Operating temperature range °C [°F] | 0–60 [32–140] | |||
| Maximum operating frequency cycle/min | 120 | |||
| Lubrication | Not required | |||
| Effective gripping force (F)¹ N [lbf] | 17 [3.8] | 17 [3.8] | 44 [9.9] | 44 [9.9] |
| Open/closed stroke mm [in.] | 16 [0.630] | |||
