KOGANEI CORPORATION

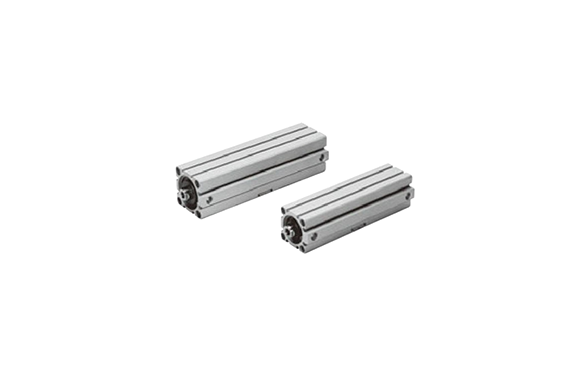

Koganei Jig Cylinder C Series Long Stroke Cylinders Double Acting Type
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Bore size mm [in.] 12 [0.472] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] | 50 [1.969] | 63 [2.480] | 80 [3.150] | 100 [3.940] |
|---|---|---|---|---|---|---|---|---|---|---|
| Operation type | Double acting type | |||||||||
| Media | Air | |||||||||
| Operating pressure range MPa [psi.] | 0.15–1.0 [22–145] | 0.1–1.0 [15–145] | ||||||||
| Proof pressure MPa [psi.] | 1.5 [218] | |||||||||
| Operating temperature range °C [°F] | 0–60 [32–140] | |||||||||
| Operating speed range mm/s [in./sec.] | 30–500 [1.2–19.7] | 30–300 [1.2–11.8] | ||||||||
| Cushion | Rubber bumper (Standard equipment) | |||||||||
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 ISO VG32 or equivalent.) | |||||||||
| Port size | M5 × 0.8 | — | — | Rc1/8 | — | Rc1/4 | — | — | Rc3/8 | — |
