- Koganei KSD Dual Stroke Cylinders KCSDW (Steel Tube Type) φ125, φ140, φ160, φ180, φ200, φ250
KOGANEI CORPORATION

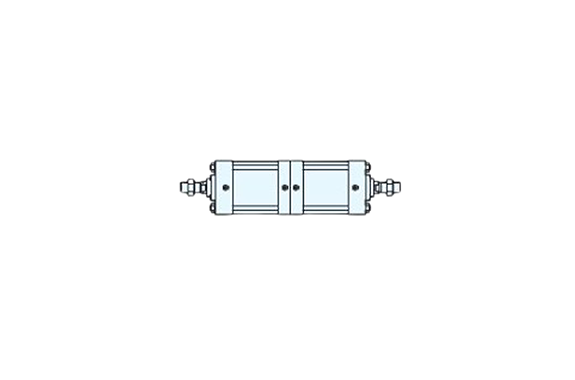

Koganei KSD Dual Stroke Cylinders KCSDW (Steel Tube Type) φ125, φ140, φ160, φ180, φ200, φ250
Manufacturer: KOGANEI CORPORATION
Features
Installation dimensions comply with JIS standards (JIS B 8368) (Excluding φ140 and φ…)
A wide selection of variations!
Cylinder bores φ125 to φ250 (Up to φ160 for sensor cylinder)
Strokes up to 2000 mm supported (Depends on model)
Compatible with Class 2 pressure vessel
Specifications
| Item | Cylinder bore mm | 125 | 140 | 160 | 180 | 200 | 250 |
|---|---|---|---|---|---|---|---|
| Operating type | Double acting type | ||||||
| Medium | Air | ||||||
| Mounting types | Basic type, foot type, flange type, rod side flange type, head side flange type, clevis type, eye type, trunnion type | ||||||
| Operating pressure range | MPa | 0.1 to 0.7 | |||||
| Proof pressure | MPa | 1.05 | |||||
| Operating temperature range | °C | 0 to 60 (no freezing, fluoro rubber seal material specification: 0 to 100) | |||||
| Operating speed range | mm/s | 50 to 700 | |||||
| Cushion | Variable cushion at both stroke ends | ||||||
| Cushion stroke | mm | 17 (rod side), 15 (head side) | 20 (rod side, head side) | — | 22 (rod side, head side) | — | |
| Lubrication | Not required (If lubrication will be applied, use Class 1 turbine oil [ISO VG32] or its equivalent.) | ||||||
| Connection port size | Rc | 1/2 | 3/4 | 1 | |||
