KOGANEI CORPORATION

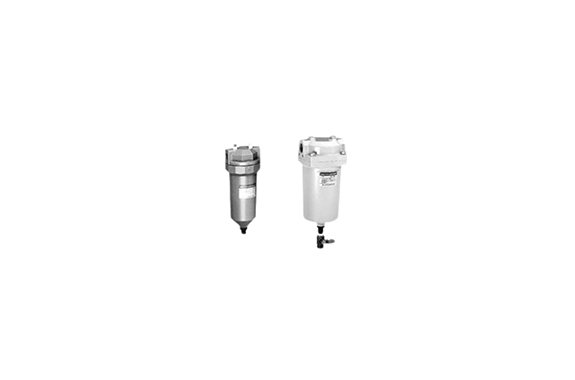

Koganei Line Filters KLF Series
Manufacturer: KOGANEI CORPORATION
Features
This filter effectively eliminates solid particles larger than 3 μm, ensuring cleaner air. It utilizes a long-life, pleated pre-filter, which maintains virtually no pressure loss, enhancing system efficiency.
Furthermore, it can be installed either upstream or downstream of the air dryer. Alternatively, it can be positioned upstream of the micro mist filter to extend the operating life of both the air dryer and the micro mist filter. This flexibility improves overall performance and durability.
Specifications
| Item | Model | KLF-75 | KLF-150 | KLF-200 |
|---|---|---|---|---|
| Media | Air | |||
| Operating pressure range | MPa [psi] | 0.2～0.97 [29～141] | 0.2～0.97 [29～141] | 0.2～0.97 [29～141] |
| Operating temperature range | °C [°F] | 5～60 [41～140] | 5～60 [41～140] | 5～60 [41～140] |
| Intake air temperature range | °C [°F] | 5～60 [41～140] | 5～60 [41～140] | 5～60 [41～140] |
| Connection port | IN, OUT Rc3/8 | IN, OUT Rc1/2 | IN, OUT Rc3/4 | |
| Drain port | Rc1/4 (outer diameter φ16 [0.63in.]) | Rc1/8 | Rc1/8 | |
| Volume of processed air* | ℓ/min [ft³/min] (ANR) | 0.33 [11.6] | 1.0 [35.3] | 1.65 [58.2] |
| Filtration rating | µm | 3 | ||
| Pressure drop | MPa [psi] | Initial stage: 0.005 [0.73] | Initial stage: 0.005 [0.73] | Initial stage: 0.005 [0.73] |
| Element operating life | Hr | Change at 3000 hours or one year whichever comes first | ||
| External dimensions | Dimension between flats × total length | 90 × 238 [3.54 × 9.37] | 115 × 287 [4.53 × 11.30] | 115 × 287 [4.53 × 11.30] |
| Mass | kg [lb] | 1.0 [2.2] | 1.2 [2.6] | 1.6 [3.5] |
| Painting (Munsell No.) | Baked finish with acrylic resin (7.5GY5/2) | Baked finish with acrylic resin (7.5GY5/2) | Baked finish with melamine resin (5GY8/5.0) | |
| Filter element | Model | EL-75-A | EL-150-A | EL-200-C |
| Quantity | 1 | 1 | 1 | |
