The single diaphragm design delivers high-precision pressure regulation in a compact form, and it ensures consistent performance across demanding applications. Moreover, the push lock regulator knob provides light and smooth pressure adjustment, which improves usability and control. Consequently, operators can fine-tune settings quickly and maintain reliable system stability.
KOGANEI CORPORATION

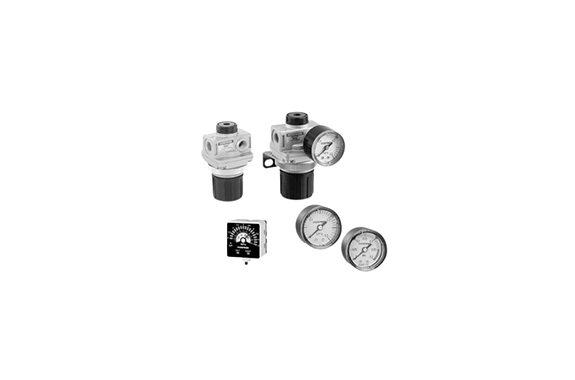

Koganei PR200 Precision Regulator
Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Item | Model | PR200 |
|---|---|---|
| Media | Air | |
| Port size | Rc | 1/4 |
| Sensitivity | MPa [psi] | 0.001 [0.15] |
| Pressure setting range | MPa [psi] | 0.005～0.25 [0.7～36] |
| Maximum operating pressure | MPa [psi] | 0.73 [106] |
| Proof pressure | MPa [psi] | 1.03 [149] |
| Operating temperature range (atmosphere and media) | °C [°F] | 5～60 [41～140] |
| Air consumption Note | ℓ/min [ft³/min] (ANR) | 5 [0.18] |
| Lubrication | Not required | |
| Mass | kg [lb.] | 0.29 [0.64] |
| Materials | Aluminum die-casting |
