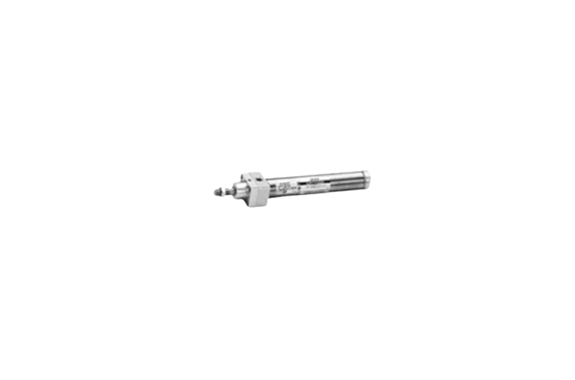

Koganei Slim Cylinders Double Acting Block Type
Manufacturer: KOGANEI CORPORATION
Features
The cylinder bore ranges from Φ20 to 40 mm [0.787 to 1.575 in], designed to meet cleanroom specifications. This slim cylinder features a double-acting type, offering reliable and efficient operation. Furthermore, the inclusion of a block design enhances durability, ensuring smooth performance in demanding applications. As a result, this cylinder is an ideal choice for environments where both compact size and high performance are essential.
Specifications
| Item | Bore size mm [in.] | |
|---|---|---|
| 16～40 [0.630～1.575] | ||
| Operating type | Double acting type | |
| Media | Air | |
| Mounting type | Side mount, Front mount | |
| Operating pressure range | 0.1～0.9 MPa [15～131 psi] | |
| Proof pressure | 1.32 MPa [191 psi] | |
| Operating temperature range | 0～60°C [32～140°F] | |
| Operating speed range | 30～300 mm/s [1.2～11.8 in./sec] | |
| Cushion | Fixed type (Rubber bumper) | |
| Lubrication | Not required | |
| Port size | Rc1/8 | |
