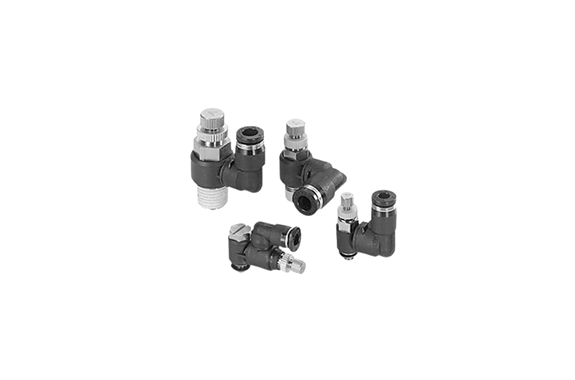

Koganei Speed Controllers With Quick Fittings Standard Type, Mini Type, Union Straight Type, Large Flow Type, Low Pressure Type
Manufacturer: KOGANEI CORPORATION
Features
Offer speed control fittings for cylinders and other actuators.
Superior flow rate characteristics assure fine-tuned adjustment in low-speed ranges.
Available model types include the standard type, union straight type, low pressure type, large flow type, and mini type.
Specifications
| Item | Type | Standard type | Mini type | Union straight type | Large flow type | Low pressure type |
|---|---|---|---|---|---|---|
| Mounting type | Direct cylinder mounting | Direct cylinder mounting | ||||
| Media | Air (Cannot be used in vacuum systems) | |||||
| Operating pressure range | MPa [psi] | 0～0.9MPa [0～131psi] | 0～0.5MPa [0～73psi] | 0～0.9MPa [0～131psi] | 0～0.5MPa [0～73psi] | |
| Cracking pressure | MPa [psi] | 0.05MPa [7psi] | 0.02MPa [3psi] | 0.05MPa [7psi] | 0.02MPa [3psi] | |
| Operating temperature range | °C [°F] | 5～60°C [41～140°F] | ||||
| Recommended tube | Nylon tube, urethane tube | |||||
| Sales unit | 1 pc. | |||||
