KOGANEI CORPORATION

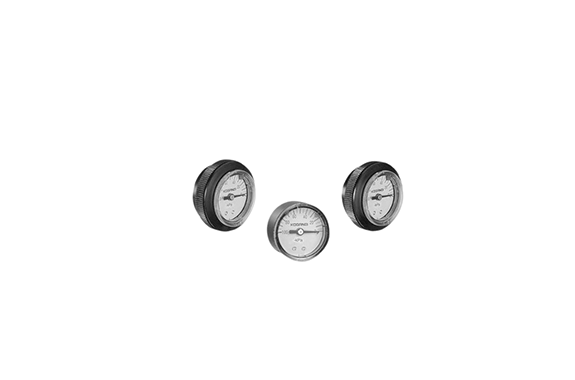

Koganei Vacuum Gauges GV-40, GPV-40
Manufacturer: KOGANEI CORPORATION
Features
This vacuum pressure gauge features a 40 mm (1.575 in) outside diameter, making it compact and efficient for various applications. Additionally, a panel mount option is available, offering convenience when incorporating it into devices, ensuring easy integration and secure mounting.
Specifications
| Item | Model | GV-40-01 | GV-40, GPV-40 |
|---|---|---|---|
| Media | Air | ||
| Pressure indication range | kPa [in.Hg] | 0～100 [0～29.54] | 0～100 [0～29.54] |
| Accuracy | F.S. ±3% | ||
| Operating temperature range | °C [°F] | 5～60 [41～140] | |
| Port size | R1/8 (female thread M5 × 0.8) | R1/4 (female thread M5 × 0.8) | |
| Mass | kg [lb.] | 0.08 [0.18] | 0.09 [0.20] |
