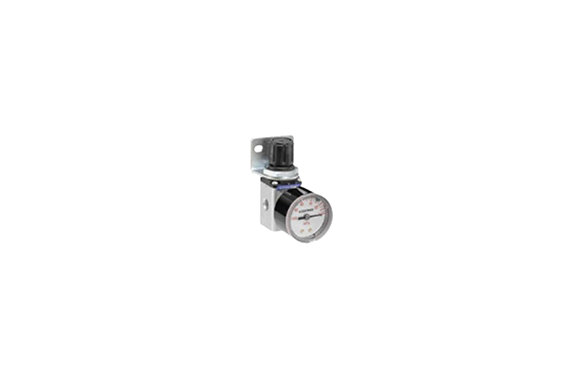

Koganei VR100 Small Vacuum Regulators
Manufacturer: KOGANEI CORPORATION
Features
This unit allows flexible vacuum pressure settings when mounted on vacuum lines, making adjustment simple and precise. In addition, the push-lock type regulator knob enables light and smooth pressure regulation for easy operation. Moreover, panel mounting remains straightforward, since users only need to open mounting holes in the panel.
Furthermore, the suction flow rate reaches VR100 at a maximum of 4.5 ℓ/min (1.59 ft³/min) under ANR conditions, ensuring reliable performance. At the same time, the lightweight design, at just 110 g (3.88 oz), supports easy handling. Finally, the compact body size of 28 × 28 × 78 mm (1.102 × 1.102 × 3.071 in) allows installation in space-limited systems while maintaining excellent usability.
Specifications
| Item | VR100 |
|---|---|
| Media | Air |
| Setting pressure range kPa [in.Hg] | −6.5 ~ −100 [−1.9 ~ −29.54] |
| Setting pressure sensitivity kPa [in.Hg] | 0.26 [0.08] |
| Repeatability kPa [in.Hg] | ±0.8 [±0.24] |
| Proof pressure MPa [psi] | 0.2 [29] |
| Suction flow rate ℓ/min [ft³/min] (ANR) | MAX. 45 [1.6] |
| Operating temperature range °C [°F] | 5 ~ 60 [41 ~ 140] |
| Pressure characteristics kPa [in.Hg] | ΔP = 4 [1.2] |
| Port size | M5×0.8, Rc1/8 |
| Vacuum gauge connection port size Rc | 1/8 |
| Mass kg [lb.] | 0.11 [0.24] |
