Manufacturer: KOKEN LTD.
Model: BR-L Series

OVERVIEW OF VITAS COMPRESSED AIR BREATHING APPARATUS

• This is a Self-Contained Breathing Apparatus (SCBA), where the user carries a high-pressure compressed air cylinder (hereinafter referred to as the cylinder). The pressure is reduced in 2 stages to ambient pressure to provide clean air to the wearer. The device allows for safe operation without inhaling air in a hazardous working environment.
• Because the air is supplied from the cylinder carried by the user, the range of movement is not restricted like airline masks, allowing use over a wide area. (However, the usage time will be limited by the amount of air in the cylinder).
• Complies with the JIS T 8155 standard.

HARNESS SECTION (CARRIER)

Excellent wearability thanks to an ergonomic design.

Burden on shoulders and lower back significantly reduced through load distribution (Series III)
The harness backplate is made of high-strength polyethylene plastic, features a 3D curve, is lightweight, and provides an excellent wearing feel. Wide lumbar pads and wide shoulder pads support the cylinder, distributing the weight acting on the wearer’s back, shoulders, chest, and lower back, thereby significantly reducing the burden during work and improving the fit.

Alarm Whistle Focus on safety and audibility

Assuming use in noisy sites, the alarm whistle is positioned close to the ear.

Pressure Gauge Can be checked even in the dark

The pressure gauge uses luminous paint, allowing users to check the scale graduations even in the dark.

Saver (Auxiliary Mask) [Optional]

Rescue Saver can be installed
This is a Saver (auxiliary mask) that can supply air from the cylinder to the victim during a rescue.
(A Saver coupling is required for the auxiliary mask. Also, it cannot be used for the Vitas anti-static/grounded type).

Pressure Reducer 29.4MPa Specification, Lightweight and Compact (Series III)

Vitas III has standardized the pressure reducer specifications at 29.4MPa. Functionality is enhanced thanks to a compact, lightweight design that eliminates redundant parts. The medium-pressure hose is a one-piece type that improves work efficiency. A Saver coupling can be connected. (Saver coupling specification is built-to-order).

One-Touch Cylinder Band Supports quick cylinder replacement

The one-touch buckle allows for quick cylinder replacement (comes with a safety lock mechanism). Most types of cylinders for breathing apparatuses can be installed by adjusting the mounting bracket.

Demand Valve

The Vitas demand valve has a large maximum flow rate, allowing sufficient respiration even during heavy work. Because the inhalation resistance remains almost unchanged even when the supplied air pressure changes, users can breathe smoothly.

There are 2 types of demand valves

Demand pressure type <Automatic> (Automatic positive pressure) – III-A

Demand pressure type (Manual switching) – III-P

Facepiece High Scope V Type Mask

Uses a highly airtight HAWC lip

HAWC lip face contact part

Equipped with a speech diaphragm (voice emitter)

Uses the “HAWC lip※” with a wide, flexible lip and a special curved face contact shape, creating our company’s unique suction cup effect. Achieves high airtightness, wide field of vision, and lightweight. Comes with a speech diaphragm that allows conversation even while wearing the mask.

※Abbreviation for High Adaptable Wide Concave

■ Head Harness – Selectable from 2 types

Superior in quick donning and stability.
Mesh Harness Type

Provides a secure wearing feel. (Standard specification).
Rubber Harness Type

BREATHING APPARATUS STORAGE CABINET

• Easy observation: This is a storage cabinet equipped with a window, allowing users to immediately check the internal storage status visually.

• Ready for emergencies: The equipment can be stored in a posture/state that allows users to put it on as quickly as possible during an emergency.

• Sterilization feature:

  • Uses an internal sterilization method with a germicidal lamp (wavelength 250~260nm, power 10W), helping to keep the masks and equipment clean.

  • Additionally, the reflector of the germicidal lamp is made of aluminum, providing outstanding reflection efficiency.

• Durable material: A sturdy steel cabinet using environmentally friendly powder coating technology.

• Spare cylinder storage: The lower storage compartment can hold spare cylinders.

• Good ventilation: Ventilation holes are designed with air circulation in mind, helping to prevent moisture buildup inside the cabinet.

• Included utilities:

  • Equipped with convenient hooks for storing masks.

  • The pocket (compartment) on the door can be used to store accompanying accessories.

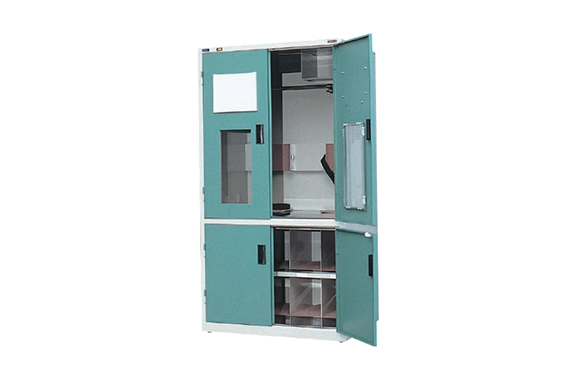

The illustrated image is the BR-200L model

Product Code: BR-100L

• Capacity: For 1 set (holds 4 cylinders).
• Overall Dimensions: Height 1500 × Width 425 × Depth 610 (mm).
• Upper Compartment Inner Dimensions: Height 877 × Width 423 × Depth 610 (mm).
• Lower Compartment Inner Dimensions: Height 520 × Width 423 × Depth 610 (mm).

Product Code: BR-200L

• Capacity: For 2 sets (holds 8 cylinders).
• Overall Dimensions: Height 1500 × Width 800 × Depth 610 (mm).
• Upper Compartment Inner Dimensions: Height 877 × Width 798 × Depth 610 (mm).
• Lower Compartment Inner Dimensions: Height 520 × Width 798 × Depth 610 (mm).

Unit of measurement: mm
Manufacturer: Koyo Steel Co., Ltd.
