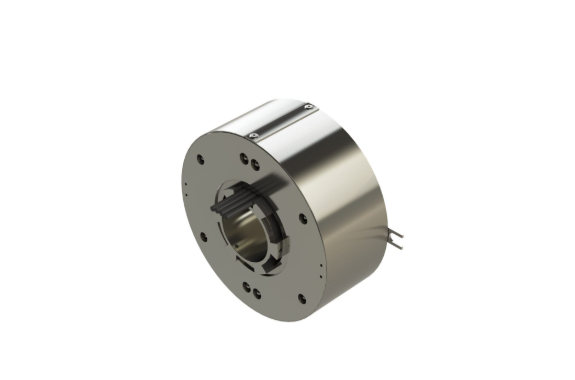

Kyoei Electric Co., Ltd. HA-N060G190A060 Slip Ring
Manufacturer: Kyoei Electric Co., Ltd.
Model: HA-N060G190A060
Features
- This semi-custom product is designed with an inner diameter of 60 mm and is compatible with 60 A.
- A wide range of applications can be supported, from power and signals to high-speed data communication.
- The number of poles can be selected from 1 to 72 poles.
- A voltage of AC/DC 440 V or less is supported.
- An allowable current of 60 A is provided.
- An allowable rotation speed of 500 rpm is supported.
- An inner diameter of 60 mm and an outer diameter of 190 mm are provided.
- RoHS2 environmental compliance is supported.
Specifications
| Part Number | HA-N060G190A060 |
| Inner Diameter | 60 |
| Outer Diameter | 190 |
| Maximum Number of Poles | 72 |
| Voltage | 440V |
| Allowable Current | 1-60A |
| Signal (Analog Signal Such as Strain Gauge) | ○ |
| Thermocouple (Using K-Compensated Wire) | ○ |
| Communication Circuit | ○ |
| Permissible Rotational Speed | 500 |
| Rotation Life | 28 million |
| Maintenance Cycle | 4 million |
| Direction of Rotation | CW-CCW Index |
