Kyoei Electric Co.

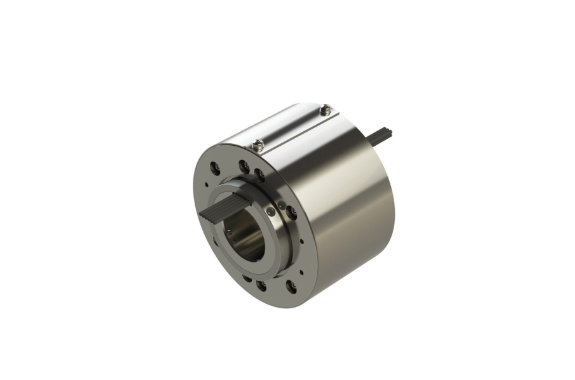

Kyoei Electric Co., Ltd. Hollow Type High-Speed Data Communication Compatible Slip Ring
Manufacturer: Kyoei Electric Co., Ltd.
Model: Hollow Type
Features
A wide range of applications can be supported, from power and signals to high-speed data communication.
Specifications
| Number of poles | 2 to 24 poles |
| Voltage | AC200V, DC24V |
| Allowable current | 10A |
| Allowable rotation speed | 300rpm |
| Inner diameter/Outer diameter | 40mm/120mm |
| Environmental compliance | RoHS2 compliant |

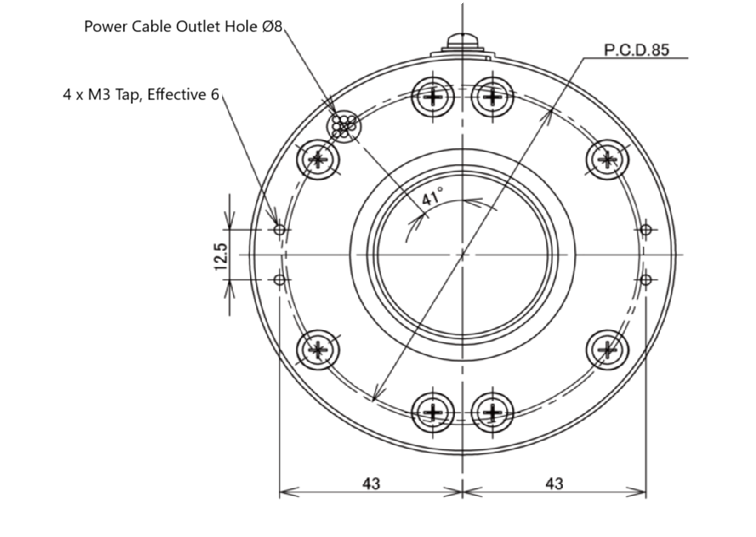

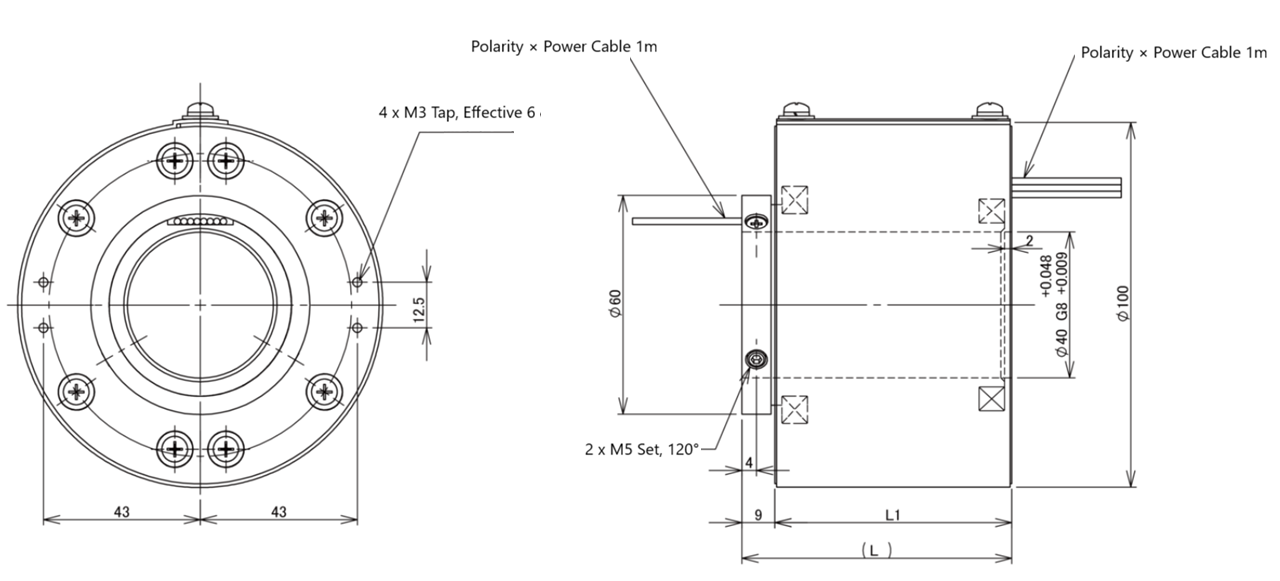

◆ Dimensions
