Meidensha Engine Driven Synchronous Generators
Manufacturer: Meidensha Corporation
Features

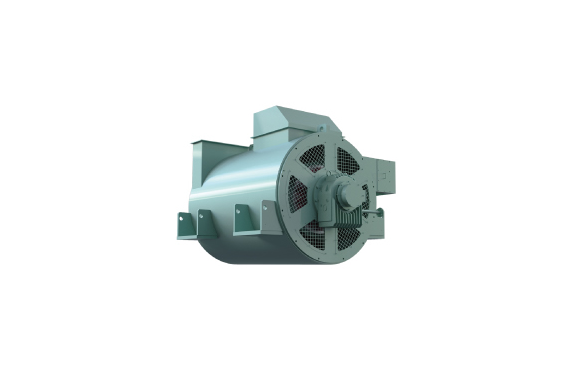

Cross sectional view of the 10 MVA class engine generator

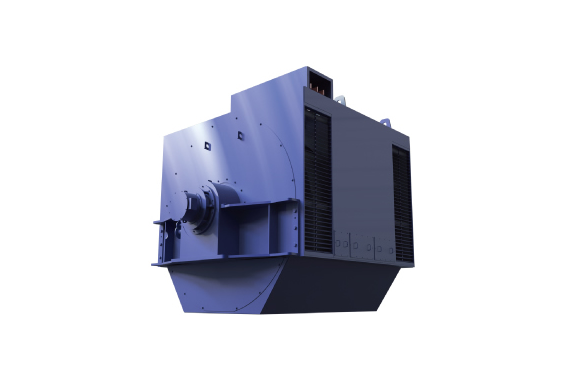

Cross sectional view of the 20 MVA class engine generatorWe meet the diversifying needs for generator such as high quality, high efficiency, and compact design.
Compact and light weight design
High reliability and long operational life
High performance
Easy maintenance and inspection
Low noise
Short delivery
It offers sophisticated control by combining the digital AVR (automatic voltage regulator).
Applications
It can be used for in-house power generation for factory or a power plant in a island for power utility, etc.
Specifications
| Item | Standard Specifications | Modified Specifications | |
|---|---|---|---|
| Environmental conditions | Ambient temperature | -15-40°C | Please specify when non-standard specifications are needed. |
| Altitude | 1,000 m or less | ||
| Humidity | 90% or less | ||
| Types of rating | Continuous | Please specify when non-standard specifications are needed. | |
| Output | 5,000-28,000kVA | ||
| Voltage | 3300V/6600V/11000V/13800V | ||
| Power factor | 90% (lagging), 80% (lagging) | ||
| Frequency | 50Hz/60Hz | ||
| Number of poles | 8-pole to 14-pole | ||
| Applicable standards | JEC2130/IEC60034 | ||
| Protection degree | IP21 (protection drip-proof type) | ||
| Cooling system | IC01 (free ventilation type) | ||
| Thermal class | 155(F) | ||
| Temperature rise limit | 155(F) | 130(B) | |
| Type of the rotator | Salient pole type | ||
| Lubrication system | Forced lubrication | Self-lubrication | |
| Method of supporting bearings | Single bearing or double bearings | ||
| Excitation system | Brushless type with permanent magnet generator (PMG) | Brushless type with excitation transformer | |
