MIKASA MVC-T100D Plate Compactor

Made in: Japan
Manufacturer: Mikasa
Model: MVC-T100D

Plate Compactor with Special Ductile Compaction Base Plate

●Highly durable special ductile compaction base plate.
●Self lubricated vibrator system : patented.
●VAS handle to reduce hand-arm vibration(option).
●Water tank to shut out dust(13L, option).
●Single-point lifting hooks for easy loading and unloading.
●Cart of revolving type(option).
●Rubber mat for interlocking block (option).

SPECIFICATIONS
SPEC

Special ductile compaction base plate
Rugged double compaction baseplate design
Self lubricated vibrator system : Patented
VAS handle 〇(option)
Folding handle
Long handle
Lifting hook
Water tank 〇(13L, option)
Rubber mat 〇(option)
Cart 〇(revolving type, option)
Mikasa carry 〇(option)
Dimensions
(mm)
A 1,100
B 650
C 825
Plate size
(mm)
D 525
E 500
Weight(kg) 103
Vibrating frequency(Hz/v.p.m) 100(6,000)
Centrifugal force(max)(kN/kgf) 15.0(1,530)
Max.traveling speed(m/min) 25
Max.limited gradeability(%/) 35
Power source model L48N
brand Yanmar
max.output 3.5kW/4.7PS

FEATURES

FEATURES 01: ICONS

FEATURES 02: Astonishing Durability / Edge to Edge specialist

  • Special Ductile Compaction Base Plate

    Special Ductile Compaction Base Plate

    The base plate made by special ductile realizes significant high durability.
    Design for Low center of gravity and Increasing the thickness of back part.
    (MVC-40・50・T90・T100)

  • Rugged double compaction baseplate design

    Rugged double compaction baseplate design

    The back part of the compaction baseplate where wear is most prominent is a double baseplate design to deliver better durability when patching road surfaces or for other kinds of construction work.
    (MVC-e60・F60・F70・F80)

  • Self lubricated vibrator system(Patented)

    Self lubricated vibrator system(Patented)

    The vibrator which supplies oil in a vibrator case by using the rotation of an eccentric rotator gives a proper lubricating action to the bearings and makes the vibrator more durable.
    (MVC-40・50・T90・T100)

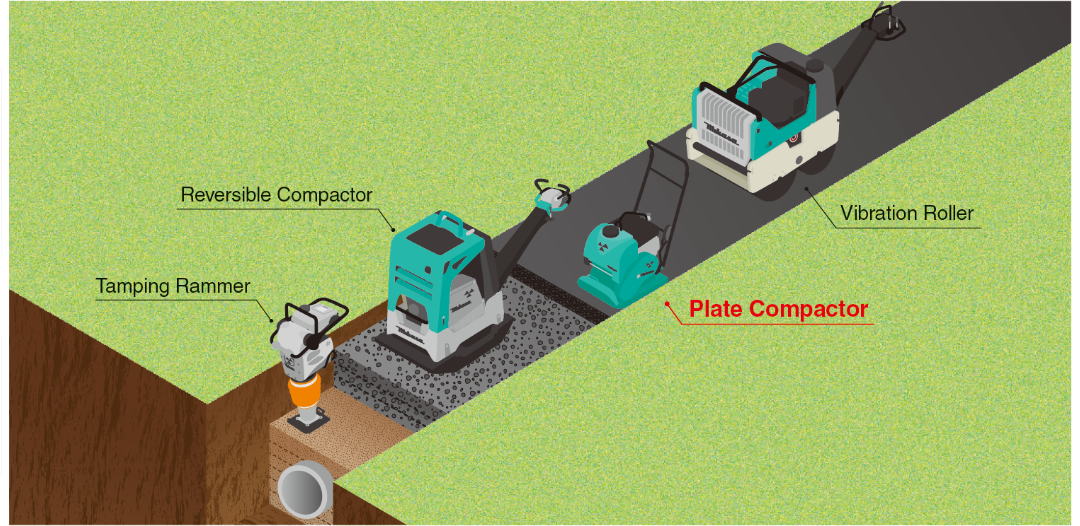

    Edge to Edge specialist

    Edge to Edge specialist

    FEATURES 03: Standard Handle + 3 Unique Handles / Equipped for functionality

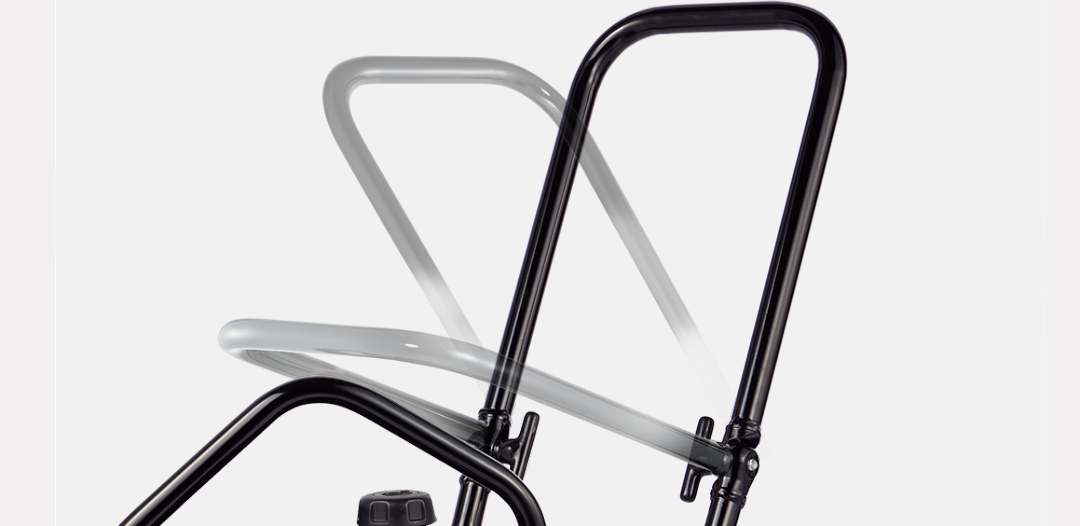

      • Folding Handle

        Folding Handle

        When store or transport the compactor, Folding handle is useful, and it folds without any tools.
        The notch type of grip bolt makes the handle lock into any position.

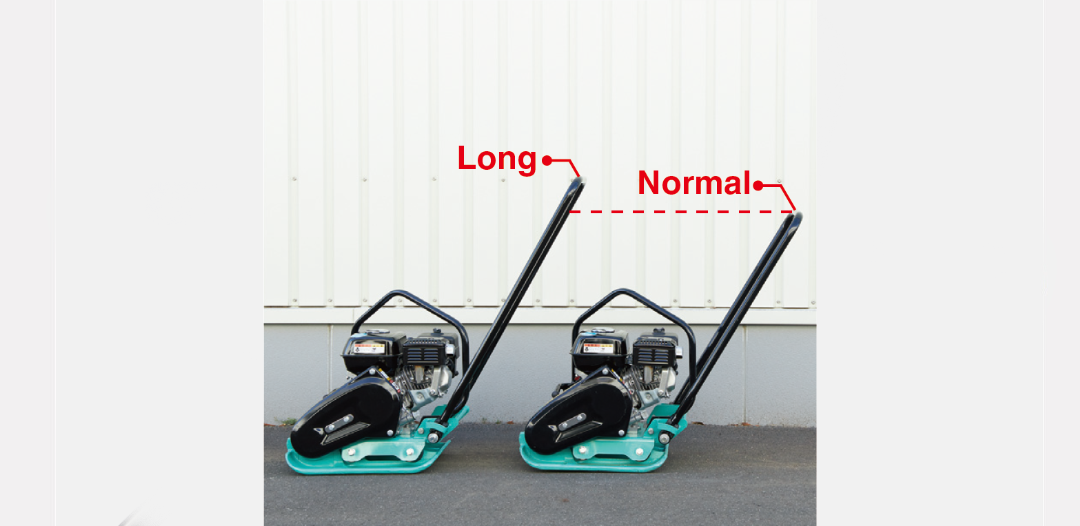

      • Long Handle

        Long Handle

        It supports high height operator for reduce stress.

      • VAS Handle

        VAS Handle

        Vibration Absorbing System Handle to reduce hand-arm vibration.

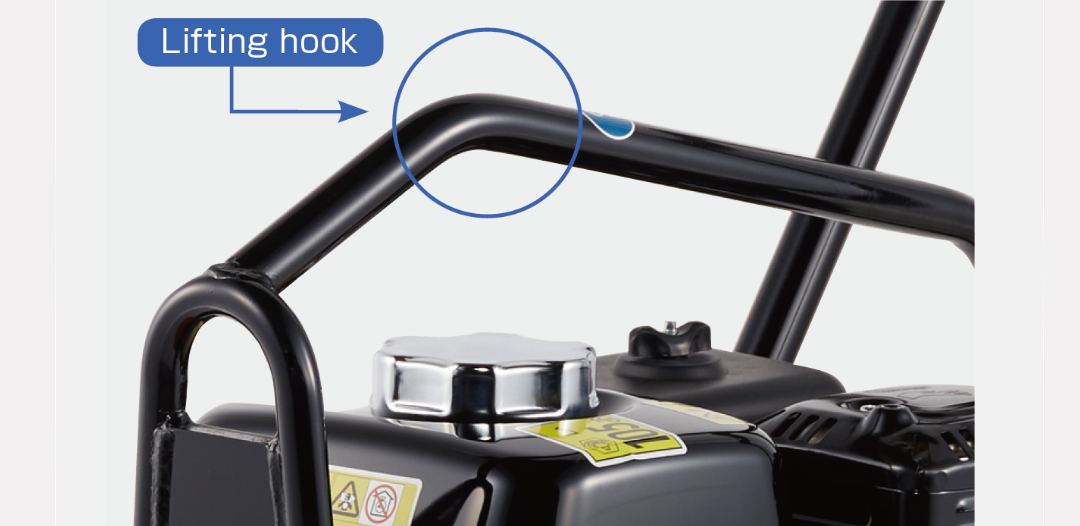

      • Lifting Hook

        Lifting Hook

        The lifting hook is equipped as standard and makes loading and unloading the compactor easily.

      • Cart of Revolving type

        Cart of Revolving type

        Easy to move around. Standard and optional.
        (MVC-e60・F60・F70・F80・T90・T100)

      • Knob to fix handle

        Knob to fix handle

        Locked during transport and unlocked during compaction.
        (e60・F60・F70・F80)

      • Stopper to fix cart

        Stopper to fix cart

        (e60・F60・F70・F80)

      • Wire to fix handle

        Wire to fix handle

        (T90・T100)
