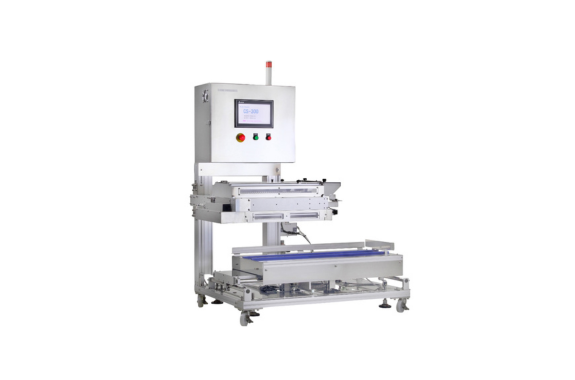

MITSUHASHI CS-300 Pouch Storage Container
Manufacturer: MITSUHASHI CORPORATION
Model: CS-300
This device uses a filling and packaging machine to cut pouches (small bags) into continuous packs, either one or multiple bags at a time, and then arranges and packs them into boxes.

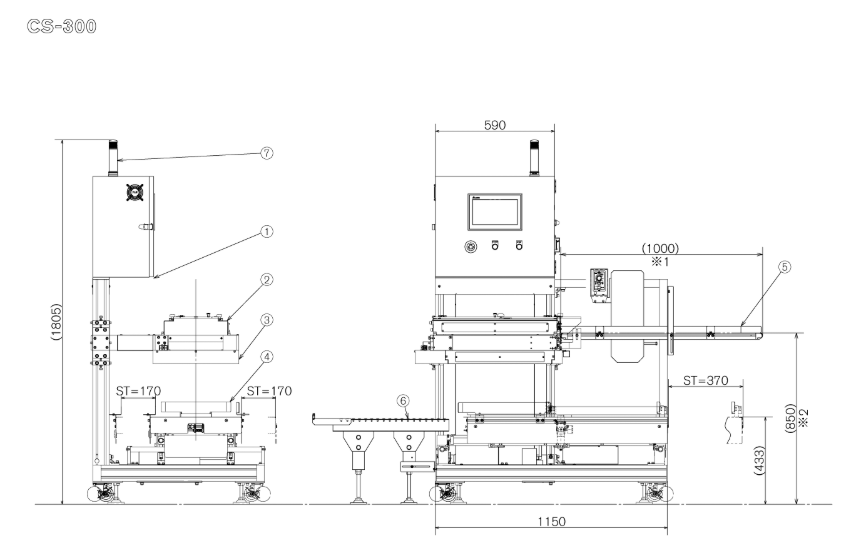

Drawing
① Control box
② Fixed-position loading unit
③ Two-stage shutter section
④ Trolley section
⑤ Conveyor section (optional)
⑥ Discharge roller conveyor (optional)
⑦ Tower ramp (optional) *1 Conveyor length *2 Conveyor height

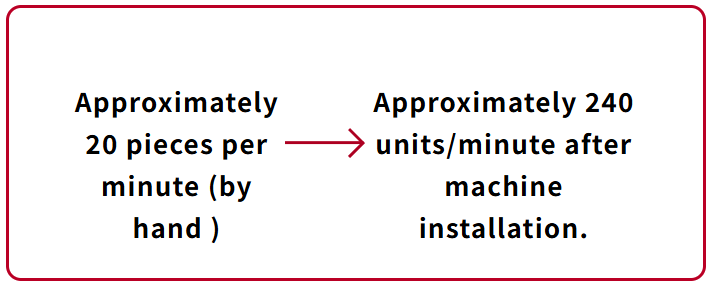

Labor-saving effect
Features
- Device capacity: 240 units/minute
- The shutter rotation is driven by an AC servo motor. This ensures a quiet working environment even during high-speed operation.
- The shutter uses a smooth-sliding embossed plate.
- It employs a two-stage shutter system. When switching boxes, it continues to count pouches continuously without interrupting the supply.
- Equipped with a 10.0-inch color touchscreen, it offers easier operation.
- The rails and wheels of the bogie section have a special shape to ensure smooth movement.
Specification
| Equipment capacity | 240 pieces/minute (maximum) *When the pouch length is 50mm, the filling capacity is equivalent to approximately 12m/minute. |
|---|---|
| Pouch packaging | Width: 65-150 mm, Length: 480 mm (maximum; total length for multi-packs), Thickness: 10 mm (maximum) |
| Storage box dimensions | Length 500mm (maximum), Width 450mm (maximum), Height 290mm (maximum) |
| Boxed weight | Maximum 15kg |
| power supply | 3-phase AC200V 50/60Hz 1.0kVA |
| Device mass | Approximately 100kg |
| Air source | 0.5 MPa 20 L/min (ANR) Dry Air |
*Equipment capacity varies depending on the specifications you require, such as pouch specifications. Please contact us for details.
Please also contact us if your requirements fall outside the above specifications.
