MITSUHASHI PDM-400 Actuator
Manufacturer: MITSUHASHI CORPORATION
Model: PDM-400

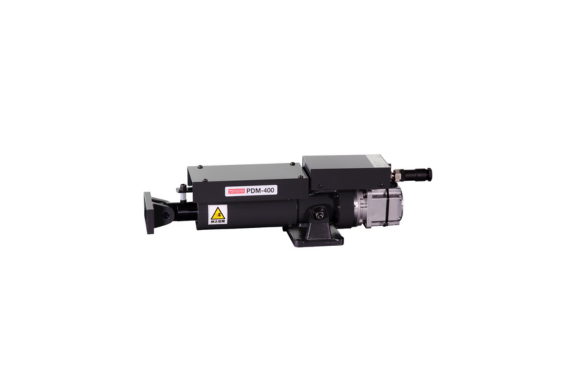

This actuator is used for controlling the meandering of the web unwinding and winding sections. It is used in combination with G-series controllers and sensors. Equipped with a brushless motor, it offers excellent maintainability and achieves high response and high-precision control. The permissible load is 1000 kg.

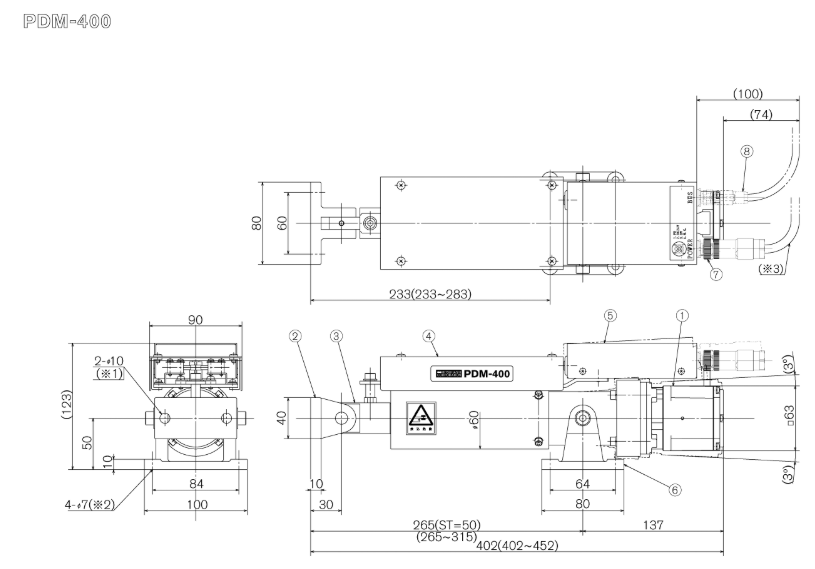

Drawing
① Brushless DC geared motor
② Connector
③ Slide rod
④ Switch unit
⑤ Electrical box
⑥ Stand
⑦ Motor power connector (included)
⑧ McBus connector (sold separately)
*1: Mounting hole *2: Mounting hole *3: Power cable (not included)
Features
- We have adopted a maintenance-free brushless DC motor.
- Compared to the conventional PD series, this new model enables more agile and precise meandering correction control.
- Since it connects to PEM-type controllers and PSM-type sensors using only connectors, wiring work is easy.
Specification
| thrust | 1300N (132kgf) | |
|---|---|---|
| stroke | 50mm | |
| Drive speed | 25mm/s | |
| mass | 6kg | |
| power supply | DC24V±20% | |
| Current consumption | 2.5A | |
| Usage environment | Temperature: 0-50°C; Humidity: 80% Rh or less (non-condensing) | |
| Connected devices | controller | PEM-200, PEM-3000 |
| sensor | PSM type sensor | |
Power supply: Supplied via the included power connector. (Cable must be provided by your company.) CAN bus: Connects to the controller and sensor using a separately sold dedicated cable. Please refer to the PEM controller catalog for connection configuration.
