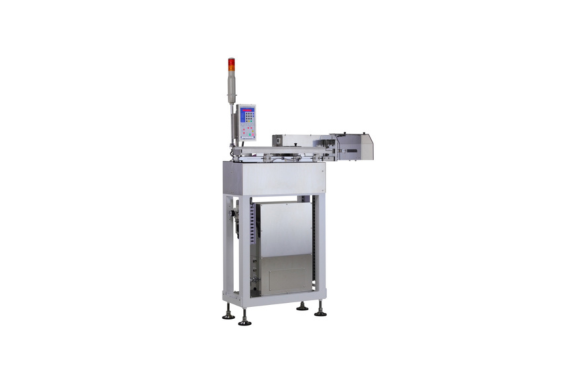

MITSUHASHI CD-870SLIM Slim Card Dispenser
Manufacturer: MITSUHASHI CORPORATION
Model: CD-870SLIM+
This device loads various types of cards, backings, trays, and lids into designated positions on a conveyor line.
Our unique cam rack mechanism ensures stable movement and smooth, card-friendly operation.

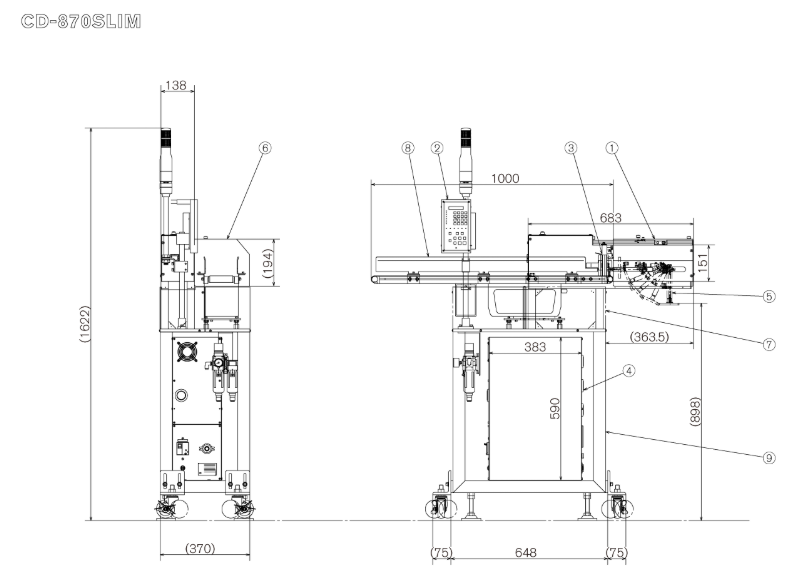

Drawing
① CD-870
② Control panel
③ Cutting frame
④ Control box
⑤ Suction arm
⑥ Safety cover
⑦ Ejector box
⑧ Supply conveyor
⑨ Frame

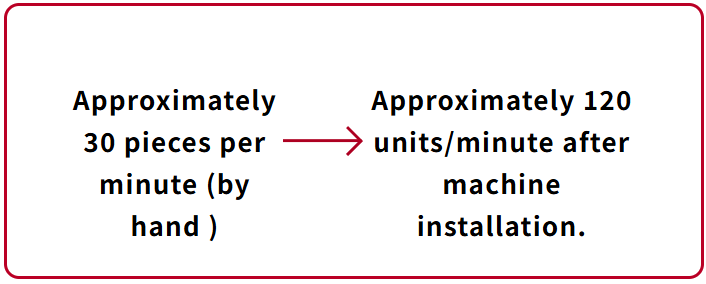

Labor-saving effect
Features
- Device capacity: 120 units/minute
- Insert the cardboard backing, tray, lid, flat pouch, etc.
- The product can be easily automatically fed in sync with input signals from packaging machines and other equipment.
- Our proprietary cam rack is used in the drive mechanism,
enabling high stability and smooth operation that is gentle on the workpiece. - Ultra-slim compact body
- Air consumption is about half of the conventional amount. 50 L/min
Specification
| Equipment capacity | 120 pieces/minute (maximum) *Maximum capacity may vary depending on the shape, hardness, and other specifications of the product. |
|---|---|
| Work specifications | Width 30-100mm, Length 30-100mm |
| power supply | 3-phase AC200V 50/60Hz 1.0kVA |
| Air source | 0.5 MPa 50 L/min (ANR) Dry Air |
| mass | Approximately 50kg |
