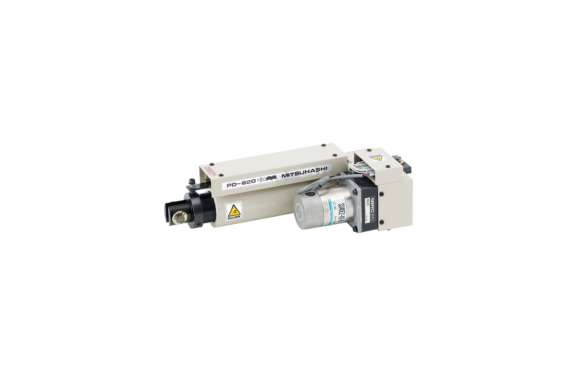

MITSUHASHI PD-620-100 Actuator
Manufacturer: MITSUHASHI CORPORATION
Model: PD-620-100
This actuator is used for controlling the meandering of the web unwinding and winding sections. It is used in combination with the Q-series control panel and detector. It is for use with systems weighing 1200 kg or less. The stroke is 100 mm, which is shorter than that of the PD-620.

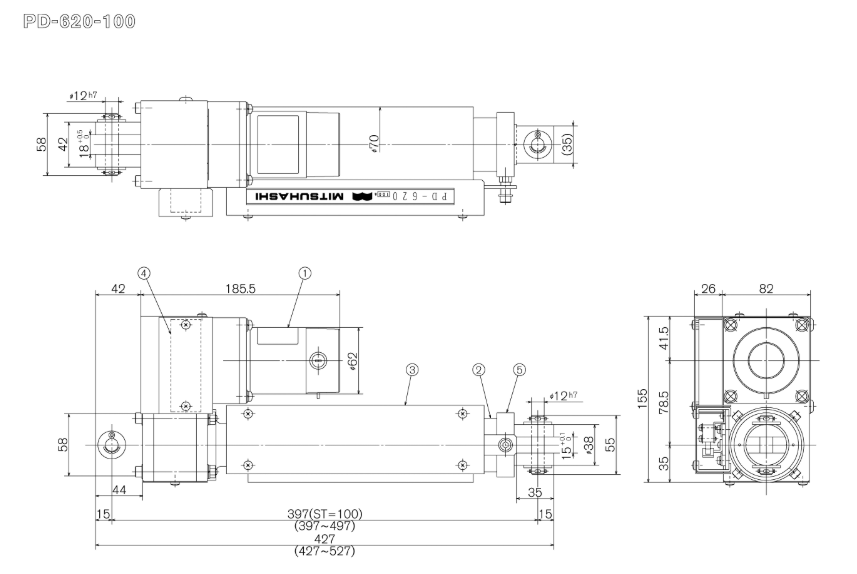

Drawing
① DC geared motor
② Slide rod
③ Switch unit
④ Terminal block
⑤ Color
Features
- Long lifespan and easy maintenance and inspection.
Because it uses a ball screw in the drive mechanism, there are virtually no wear parts, resulting in a long lifespan and easy maintenance. - Equipped with a microswitch for center position detection.
By pressing the center stop switch on the control panel, you can pre-set the actuator to the center position.
Specification
| Allowable thrust | 372N (38kgf) |
|---|---|
| Allowable mass | 1266kg |
| stroke | 100mm |
| Drive speed | 18mm/s |
| DC motor | DC24V 1.2A |
| mass | 8kg |
