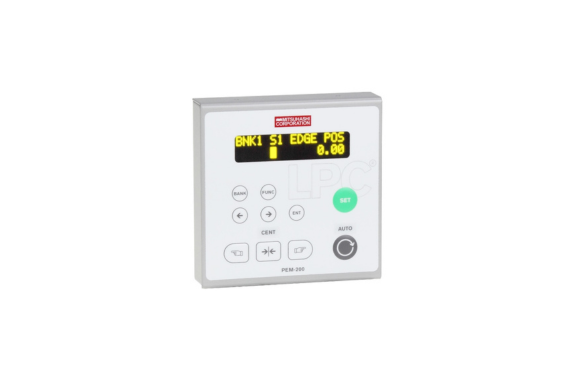

MITSUHASHI PEM-200 Controller

Manufacturer: MITSUHASHI CORPORATION
Model: PEM-200

This is a controller for web meandering control. It is used in combination with G-series sensors and drive units. It is compact, cost-effective, and provides simple yet highly responsive and accurate meandering control.

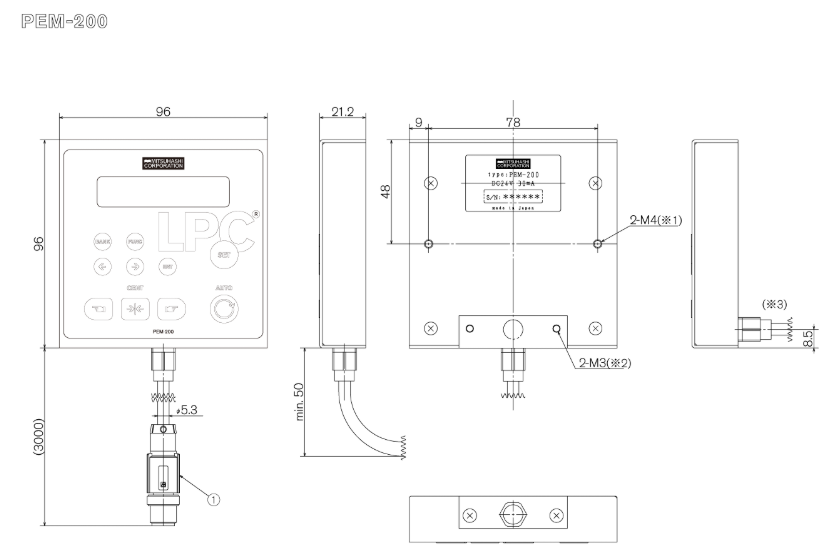

Drawing

① Peripheral device connection connector *1: For mounting *2: For cable outlet and reconfiguration *3: When cable is routed to the back

Features

This controller is easy to use with its simple functions and offers excellent cost performance.
You can monitor the web control status on a small display.
It has a compact 96mm body. When not fixed in place, it can also be used as a handheld device.
In addition to controlling the position of web edges or lines, centering control is also possible by using pairs of sensors.
Since the connections between devices are made using connectors, wiring can be done quickly and accurately. In addition, the system automatically recognizes the connected devices, making initial setup during installation easy.
By switching the internal setting switch, it can also be used as a remote box for the high-end controller model PEM-3000. Furthermore, in a simple meandering control system using detectors such as the PSM-46WS or PSM-75WS in controller mode (master mode), it can be used as a hot-swappable parameter setter.

Specification

power supply		DC24V±20%
Current consumption		The power supply is 30mA or less (current consumption of the PEM-200 unit during operation at a power supply voltage of DC24V) and is supplied via the CAN bus. Please provide an appropriate power supply for the CAN bus, taking into account the current consumption of peripheral devices such as sensors.
mass		Approximately 500g (including included cable)
Included cable		Cable length 3m, connector at the end (M12 male connector, 5-pin, A coding)
Installation environment	Humidity temperature	0-40℃
	Ambient humidity	80% RH or less (no condensation)
	atmosphere	Indoors (out of direct sunlight), well-ventilated. Free from corrosive gases, flammable gases, oil mist, and dust.
	others	Please avoid installing the device in locations with high vibration levels.
Connected devices	sensor	Up to two PSM series devices can be connected. Single: Detects web edge or line mark. Centering: Detects both web edges.
	drive unit	• Actuators: PDM series • Roll guiders: PGM series • Other DC motor-equipped drive units: PD, PG, MR series (drive units with a rated current of 2.5A or less) Note: When using a DC motor-equipped drive unit, the DC motor driver PCM-D40 is required.
	option	• Expansion I/O Module: PXM-100 with 10 inputs (reference position set, mode selection (AUTO/MAN/CENT), drive unit operation, bank selection) and 10 outputs (sensor OK, mode status (AUTO/MAN/CENT), drive unit stroke end, drive unit center, bank status, system run)
Display		Organic EL display, monochrome 16 characters x 2 digits display
Display language		Japanese (Katakana), English
Operation keys		Sheet key
others		– Remote Box Mode: The PEM-200 can be used as a remote box by switching the switch inside the unit. (Applications: As a remote box for the PEM-3000, and as a setting device in systems without a PEM using the PSM-75WS or PSM-46WS) – The cable outlet on the PEM-200 unit can be reconfigured to either the bottom or the rear.

Note: A dedicated CAN bus cable and branch connector are required to connect the PEM-200 to sensors, drive units, and other optional equipment. Please select the appropriate cable and connector for the equipment you are connecting. A dedicated connector is also required for CAN bus power supply. The above cables and connectors are available from our company (sold separately).
