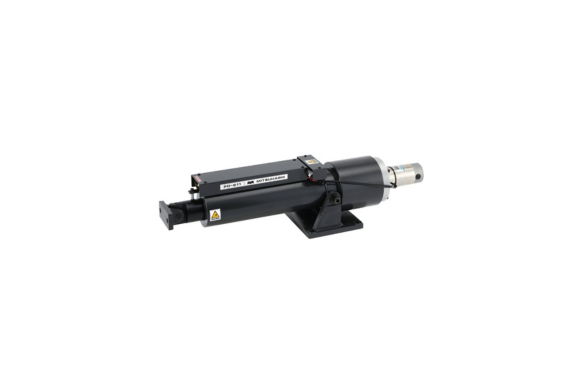

MITSUHASHI PD-811 Medium-Sized Actuator
Manufacturer: MITSUHASHI CORPORATION
Model: PD-811
This actuator is used to control the meandering of the web unwinding and winding sections. It is used in combination with the Q-series control panel and detector. It is for use with equipment weighing 5800 kg or less.

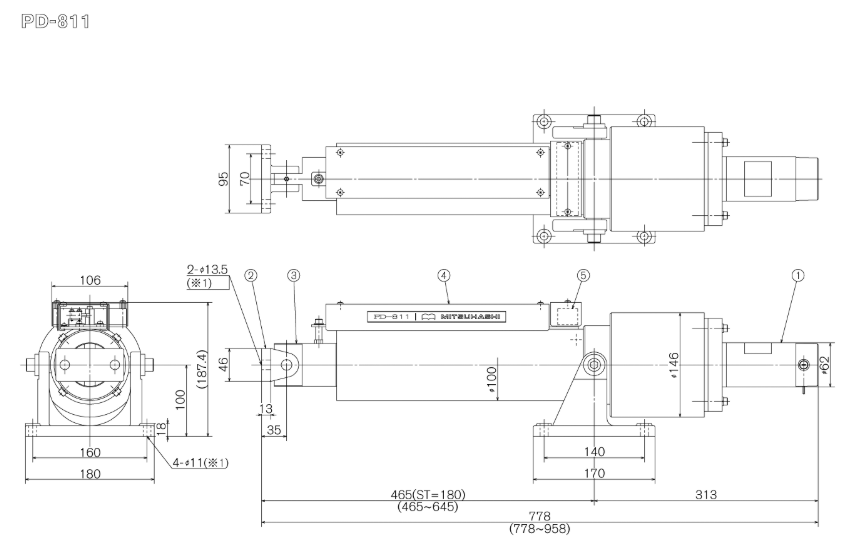

Drawing
① DC geared motor
② Connector
③ Slide rod
④ Switch unit
⑤ Terminal block
*1: Mounting holes
Features
- Long lifespan and easy maintenance and inspection.
Because it uses a ball screw in the drive mechanism, there are virtually no wear parts, resulting in a long lifespan and easy maintenance. - Equipped with a microswitch for center position detection.
By pressing the center stop switch on the control panel, you can pre-set the actuator to the center position.
Specification
| Allowable thrust | 1725N (176kgf) |
|---|---|
| Allowable mass | 5860kg |
| stroke | 180mm |
| Drive speed | 13mm/s |
| DC motor | DC24V 3.8A |
| mass | 30kg |
