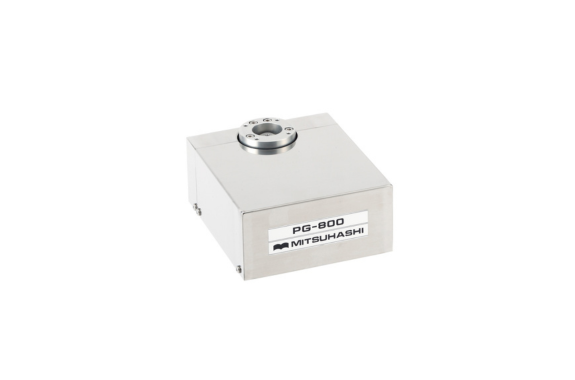

MITSUHASHI PG-800 Small Roll Guide
Manufacturer: MITSUHASHI CORPORATION
Model: PG-800
This is an offset roll guide used for meandering control in the intermediate stages of web transport. It features ball drive for low backlash and high-precision control.

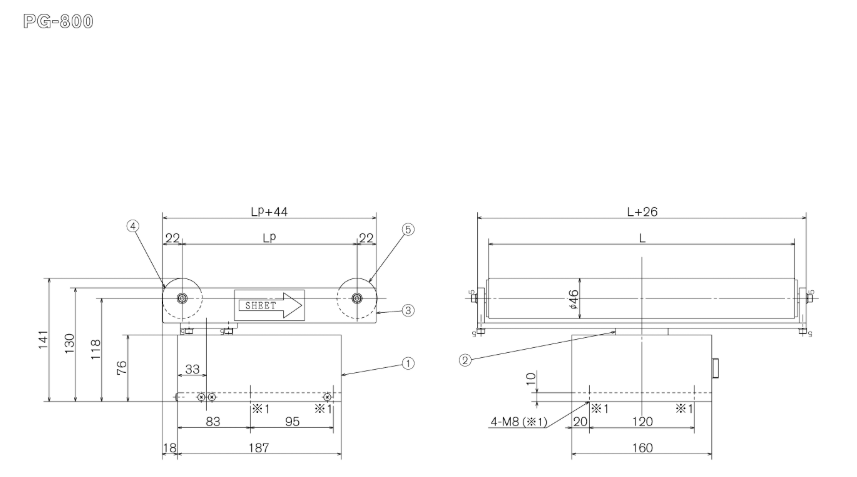

Drawing
① Drive unit
② Pivot stand
③ Roll frame
④ Inlet side roll
⑤ Outlet side roll
L: Roll face length Lp: Roll span
*1: Mounting tap
Features
- It is ideal for position control during the sheet processing line.
- Ideal for materials prone to permanent deformation or tearing.
The roll guide controls the web by twisting it at both the inlet and outlet ends. This minimizes the tension difference between the two edges of the web, making it suitable for controlling webs made of materials prone to permanent deformation or tearing.
Specification
| DC motor | DC24V 0.4A |
|---|---|
| correction speed | 6.5 mm/s (at a roll span of 200 mm) |
| Controlled quantity | 13mm (when roll span is 200mm) |
| Maximum seat speed | 100m/min |
| Roll surface length | 100-300mm |
| Roll diameter | φ46 (standard) |
| Rollspan | 50-200mm |
