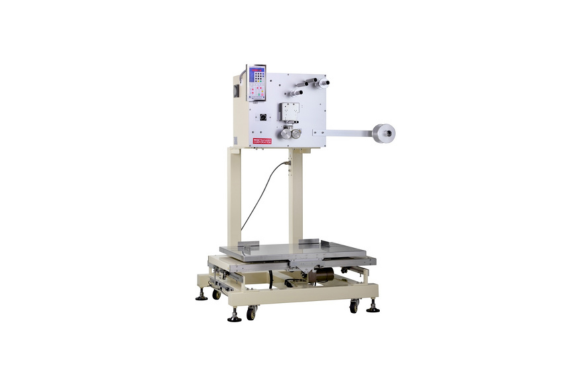

MITSUHASHI KE-354 Pouch Loader
Manufacturer: MITSUHASHI CORPORATION
Model: KE-354
This device connects to various three-sided and four-sided sealing filling and packaging machines, and folds continuous pouches (small bags) in fixed-quantity units and packs them into boxes.

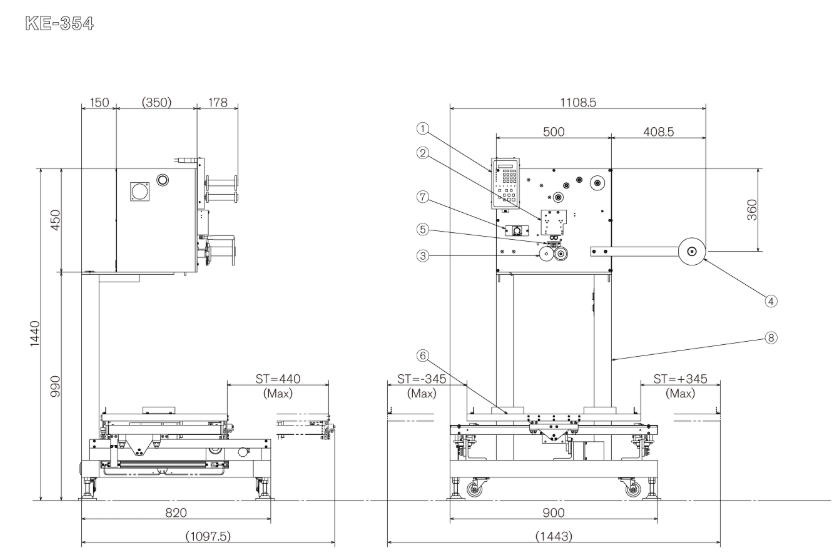

Drawing
① Control panel
② Pitch detection unit
③ Quantitative feed unit
④ Roll unit
⑤ Anti-jamming guide
⑥ XY axis traverser
⑦ Speed adjustment volume
⑧ Frame
Labor-saving effect
Features
- Equipment capacity 12m/min
- This is a low-speed box packing machine that packs boxes while moving them left and right and forward and backward.
- High-performance 32-bit microcontroller control
- A wide range of options are available, including a notch unit that cuts vertical seals, a mark misalignment detection unit that detects misalignment between the mark and the contents, and a seam detection unit that detects the seam tape on continuous pouches.
Specification
| Equipment capacity | 12 m/min <When bag length is 70 mm (folded 10 times)> *Maximum capacity may vary depending on packaging material, contents, and storage box dimensions. |
|---|---|
| Pouch packaging | Width 100mm (maximum) Length 150mm (maximum) |
| Storage box dimensions | Width: 400-710mm (external dimensions) Depth: 200-510mm (external dimensions) Height: 100-310mm (external dimensions) |
| power supply | 1φ AC200/220V 50/60Hz 1.0kVA |
| mass | Approximately 80 kg |
