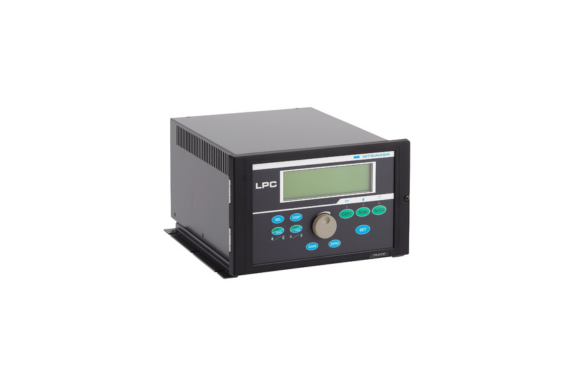

MITSUHASHI PW-2000 Control Panel

Manufacturer: MITSUHASHI CORPORATION
Model: PW-2000

This is a control panel for web meandering control. It can connect to medium-sized drive units such as actuators PD-811 and PD-850. It can connect to all Q-series detectors. It comes standard with input/output terminals for controlling operation mode switching and other functions with an external controller.

Drawing

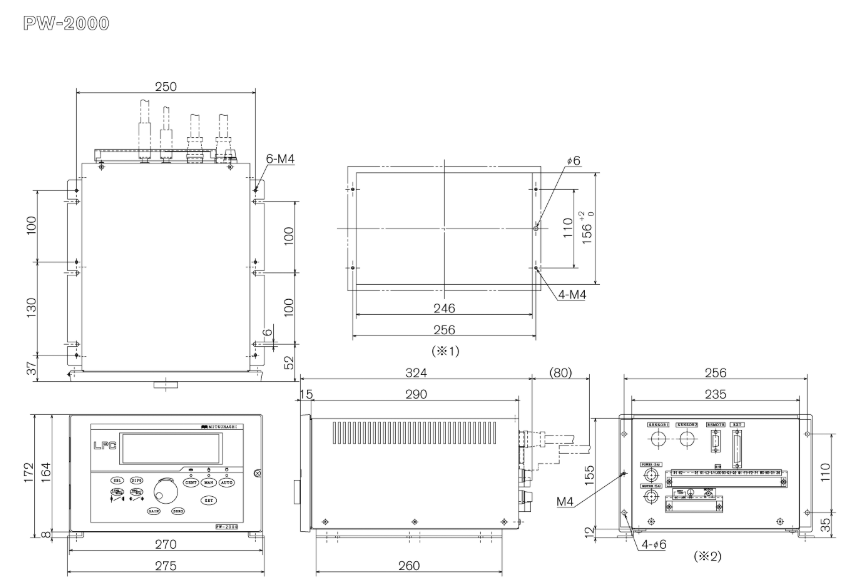

*1: Panel cutout dimensions *2: Rear view

Features

Compatible with our standard detectors
This is applicable to our standard detectors. It has two detector inputs, allowing for switching control between winding and unwinding with a single unit. Furthermore, it allows for timely switching to the most suitable detector for the web.
Prepare 3 bank memory
Three bank memories are provided for various settings. Each bank stores settings such as the detector used, gain, and zero setting, allowing you to recall the optimal settings by switching banks for different types of webs.
Equipped with a large LCD display (8 lines x 40 characters)
The operating status can be easily understood at a glance.
Furthermore, settings can be easily configured to accommodate a variety of usage methods.

Standard specifications

External shape	Refer to the outline drawing.
power supply	Single-phase AC 85V to AC 264V flexible power supply
Power consumption	Max 250VA
mass	Approximately 6.5kg
Usage environment	Ambient temperature 0-40°C (non-condensing), humidity 80%RH or less.

Feature Overview

Detection input	Two external analog inputs (mixed types allowed)
Adaptive detector	PS-261, PS-270, PS-1100, PS-300, PS-350, PS-400, PS-45, PS-450, PS-711, PS-800
Adaptive driver	PD-811, PD-850
Memory configuration	System memory: 1 Bank memory: 3 banks Detector input channel, EDGE/LINE, POS/NEG, zero, gain, integral time, dead band width, dead band gain
External control input	Mode switching (manual/center/automatic), balance set, manual drive Bank switching
External control output	During operation, mode (manual/center/automatic), driver stroke end bank switching response, comparator judgment output (optional)
option	Remote box: PT-1000 (sold separately) Comparator: Factory option
