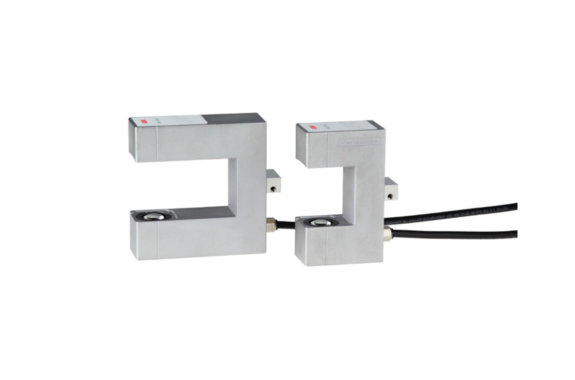

MITSUHASHI PSM-75W Infrared Edge Sensor
Manufacturer: MITSUHASHI CORPORATION
Model: PSM-75W
| Switch Panel | With Dust Blower Unit |
 |  |
This is an infrared-transmissive web edge sensor. It is used in combination with G-series controllers and drive units for web meandering control. It is suitable for edge detection of opaque webs and nonwoven fabrics.

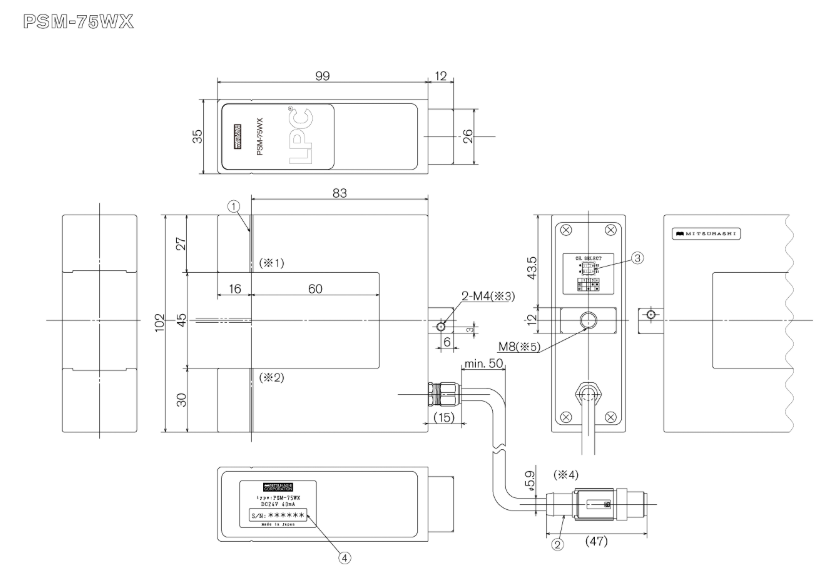

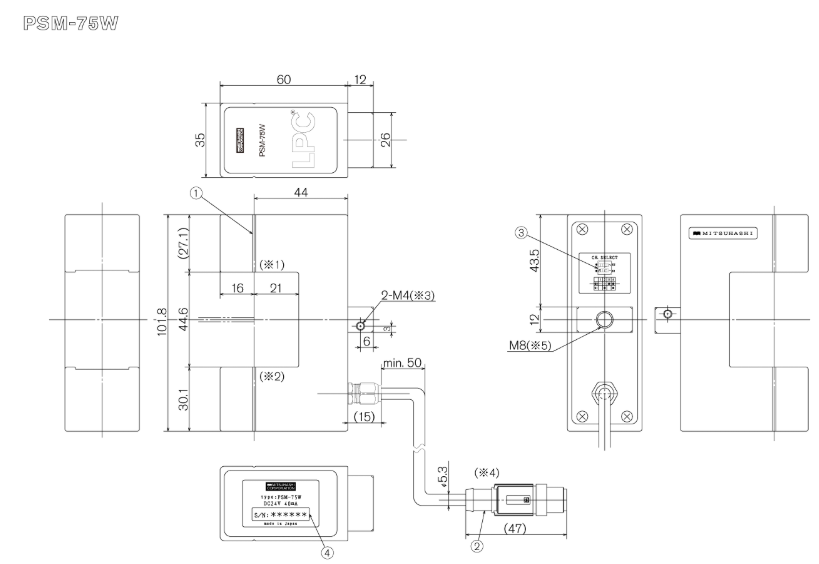

Drawing
① Center mark
② Peripheral device connection connector
③ Channel selection switch
④ Serial No.
*1: Receiving side *2: Transmitting side *3: For sheet guide mounting, depth 6 *4: Cable length 300mm *5: For mounting, depth 12
① Center mark
② Peripheral device connection connector
③ Channel selection switch
④ Serial No.
*1: Receiving side *2: Transmitting side *3: For sheet guide mounting, depth 6 *4: Cable length 300mm *5: For mounting, depth 12
Features
- The device uses infrared light as its light source and is suitable for detecting meandering in transparent and opaque films, as well as nonwoven fabrics.

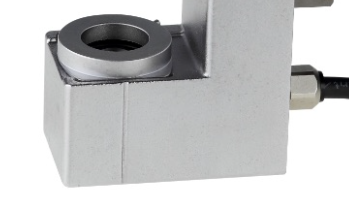

- In dusty environments, the “DB” type with a dust blowing unit is effective.
- The “W” type, with its small throat, is mainly used for roll guides, while the “WX” type, with its larger throat, is mainly used for winding and unwinding trolleys.

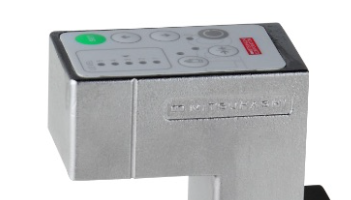

- The “75WS” and “75WXS” models, which come with a switch panel, are convenient because mode switching and teaching operations can be performed directly on the sensor unit. Furthermore, models with a switch panel can be used in a simpler system (driver and sensor only) without the need for a PEM-type controller.
Specification
| power supply | DC24V±20% (supplied via CAN bus) |
|---|---|
| Current consumption | 40mA (at DC24V power supply) |
| Usage environment | Temperature: 0-40°C, Humidity: 80% Rh or less (non-condensing) |
| mass | Approximately 300g |
| Included cable | 0.3m, with connector at the end (M12 male connector, 5-pin) |
| Detection target | Web edges, borders (such as print edges) |
| Detection range | 15mm |
| light source | Infrared light-emitting diode |
| light-receiving element | photodiode |
Lineup
| Model | Purpose |
|---|---|
| PSM-75W | Mainly for roll guides |
| PSM-75WS | Primarily for use with roll guides, with switch panel. |
| PSM-75WS-DB | Primarily for use with roll guides, with switch panel and dust blower. |
| PSM-75WX | Mainly for winding and unwinding trolleys |
| PSM-75WS | Primarily for winding and unwinding trolleys, with switch panel. |
| PSM-75WS-DB | Primarily for winding and unwinding trolleys, with switch panel and dust blower. |
DB Air Specification
| air source | 0.2～0.5MPa 20Nℓ/min |
|---|---|
| Connection port diameter | φ2.1 (for φ3 tubes) |
*Please use a speed controller to adjust the flow rate to approximately the above values.
