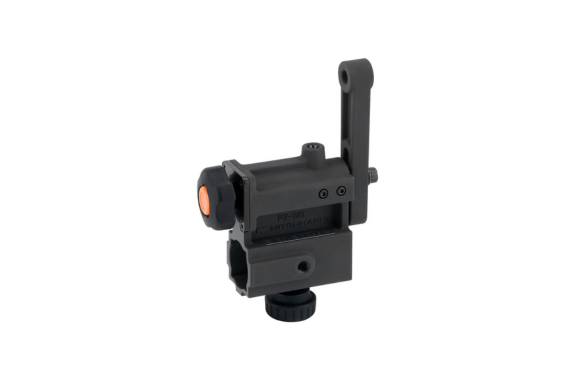

MITSUHASHI PZ-121 Detector Holder
Manufacturer: MITSUHASHI CORPORATION
Model: PZ-121
This is a holder for Q-series detectors. The detector position can be finely adjusted by turning the dial. It is primarily used with reflective detectors. It can also be adapted for transmissive detectors by changing the detector mounting section (optional).

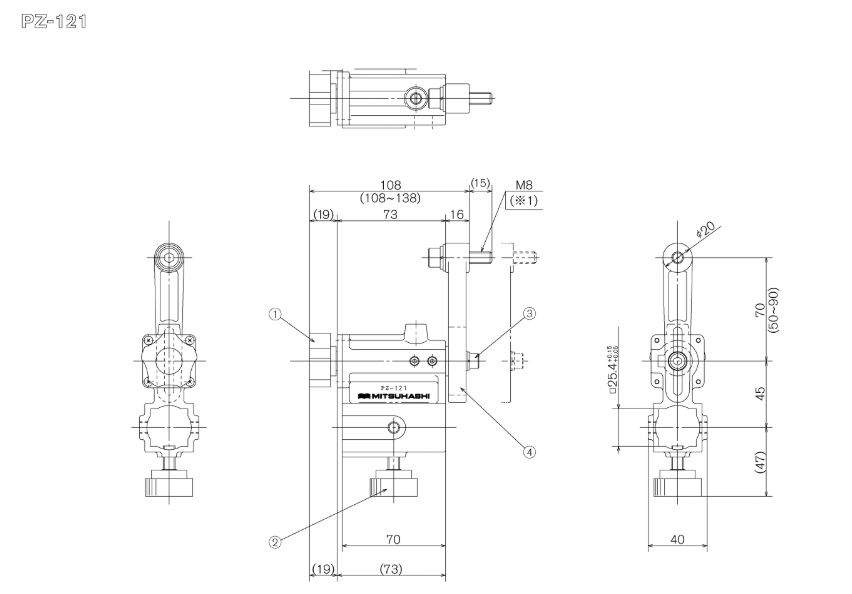

Drawing
① Left and right fine adjustment handles
② Holder fixing handle
③ Angle adjustment screw
④ Arm
*1: Detector mounting bolt
Features
- It is made of metal and is sturdy.
- Suitable for reflective detectors such as PS-261 and PS-270.
Specification
| stroke | 30mm |
|---|---|
| Feed amount | 1mm/rotation |
| mass | Approximately 500g |
