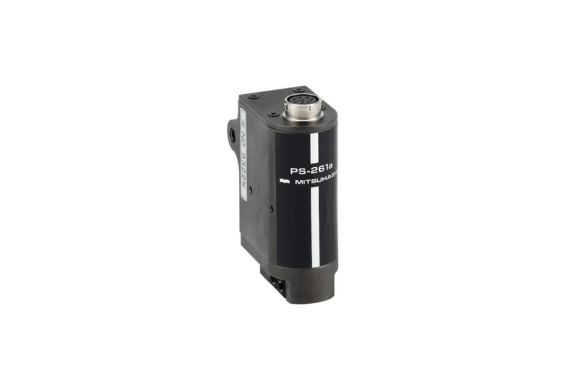

MITSUHASHI PS-261 Reflective Detector
Manufacturer: MITSUHASHI CORPORATION
Model: PS-261
It uses photoelectric reflection to detect printed line marks and boundaries on the web. It is used in combination with Q-series control panels and drive units to control the meandering of the web.

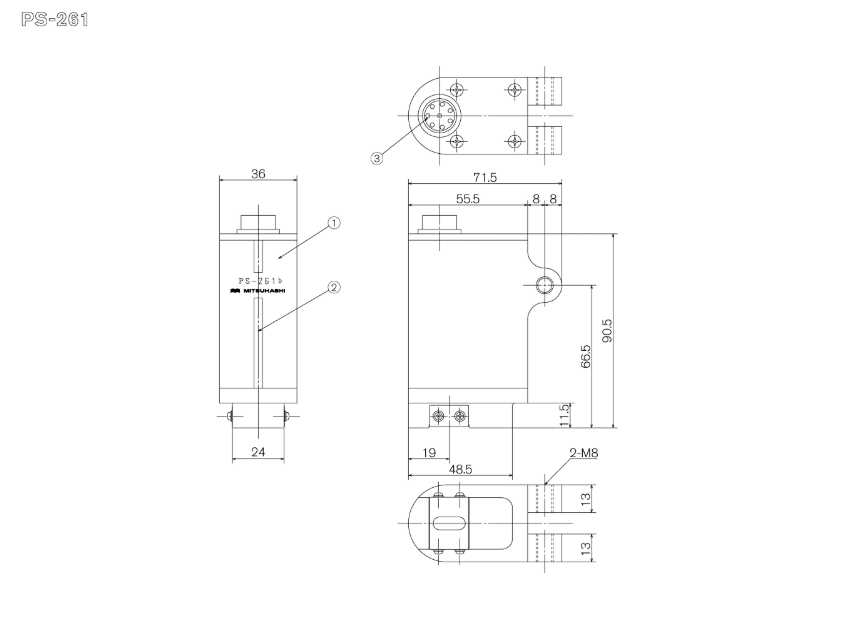

Drawing
① Main unit
② Center mark
③ Connector for detection code
Features
- By using LEDs as the light source, lamp replacement is no longer necessary.
- By switching the settings on the control panel, it is possible to switch between line and edge detection without replacing the detector.
Specification
| Detection method | Photoelectric reflection type, displacement proportional type |
|---|---|
| Detection location | Web edges, print borders, line marks |
| Detection distance | 5-7mm |
| Detection range | 6mm |
| light source | White light-emitting diode |
| light-receiving element | silicon photodiode |
| Humidity temperature | 0-50°C (no condensation) |
| weight | 700g |
| Compatible control panel | PW-1000, PWN-1000, PW-1310, PW-2000, PW-800R, PWN-800R |
