Features

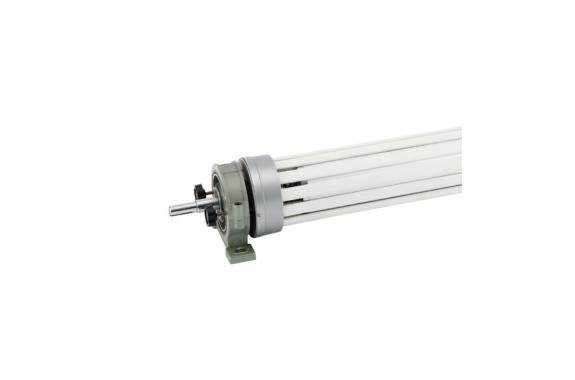

This is a non-curved, straight, elastic-cord type wrinkle-removing roll. It removes wrinkles without adding harmful distortion to the web.

• Scope of application
  These wrinkle-removing rolls are designed for line speeds of 150 m/min or less and tensions of 245 N or less.
  They are manufactured with an outer diameter of φ100 mm (rubber cord arrangement: circumference divided into 10 equal parts) and a roll surface length ranging from 150 to 1000 mm.
• The amount of expansion can be adjusted.
  The optimal deployment amount can be adjusted by changing the angle of the rings on both sides of the roll using the adjustment bolts. The adjustment status can be checked on the angle scale plate.
  Standard deployment amount: 5.2 mm (ring tilt angle 3°)
• Mounting direction
  The sheet’s pass line can be adjusted in any direction, from horizontal to vertical.
  The sheet winding angle onto the roll is generally used within the range of 30 to 90 degrees.
• Further improvement in lifespan
  The design minimizes wear on the rotating/sliding components, thus improving the overall lifespan of the roll.

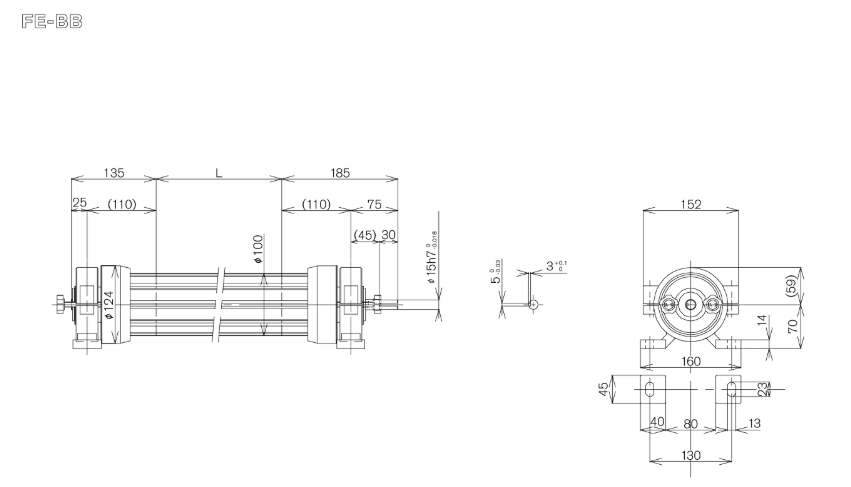

Specification

*1 This is the unfolding amount with the sheet hung at a 90° angle and the ring tilted at a 3° angle.
*2 If you require a wrinkle-removing roll for wet environments, please contact us.
*3 The properties of the rubber are described in the general catalog.
