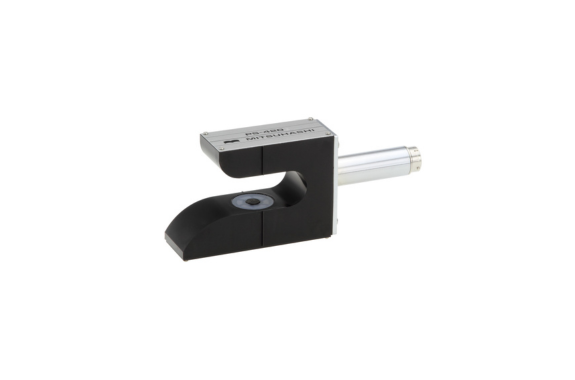

MITSUHASHI PS-420 Ultrasonic Edge Detector
Manufacturer: MITSUHASHI CORPORATION
Model: PS-420
This is an ultrasonic transmission type web edge detector. It is used in combination with the Q-series control panel and drive unit to control web meandering. It is suitable for detecting transparent objects because it is not affected by the transparency, color, or pattern of the web. The difference between the PS-420 and the similar PS-400 is that the mounting shaft of the PS-420 is made of metal.

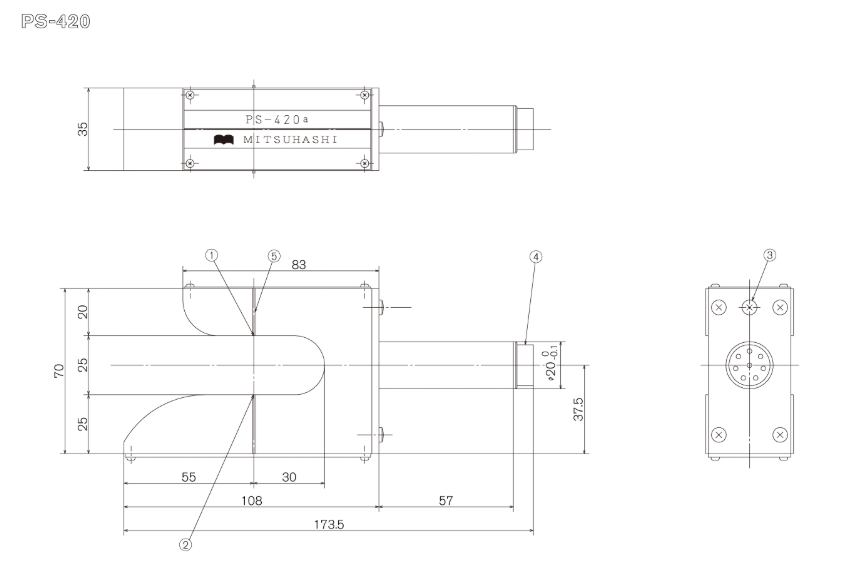

Drawing
① Receiver
② Transmitter
③ Ground terminal
④ Connection connector
⑤ Center mark
Features
- Stable detection using ultrasonic technology
By detecting changes in airborne ultrasound, the system can reliably detect web edges, regardless of the color, pattern, or transparency of various webs.
Specification
| Detection method | Ultrasound (frequency 300kHz), deviation proportional type |
|---|---|
| Detection location | Web edges (transparent, opaque edges) |
| Detection distance | 25mm |
| Detection range | Proportional band ±2mm |
| weight | Approximately 175g |
| Humidity temperature | 0-40°C (no condensation) |
| Compatible control panel | PW-1000, PWN-1000, PW-800U, PWN-800U, PW-1310, PW-2000 |
