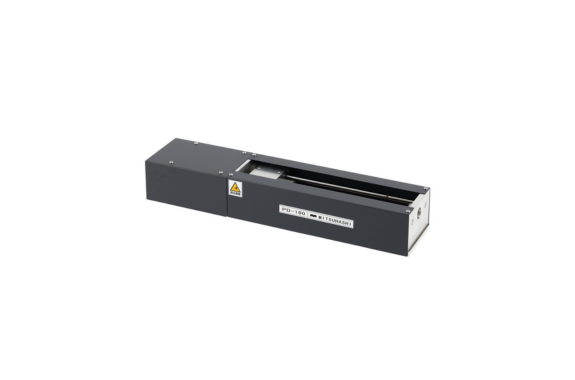

MITSUHASHI PD-100 Detector Movement Actuator
Manufacturer: MITSUHASHI CORPORATION
Model: PD-100
This is an actuator for moving the detector.

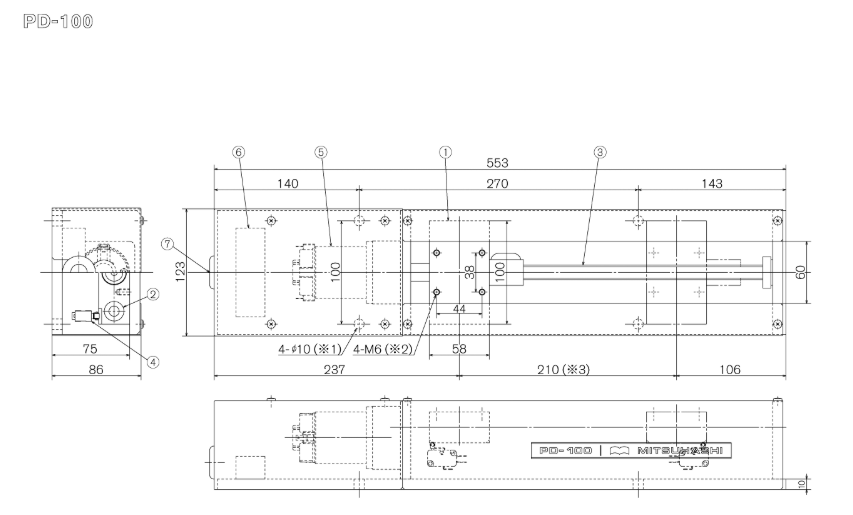

Drawing
① Mounting plate
② Ball bushing
③ Ball screw
④ Limit switch
⑤ DC geared motor
⑥ Terminal block
⑦ Cable connection port
*1: Mounting hole *2: Depth 10, detector unit mounting hole *3: Maximum stroke
Features
- This is used when you want to control the sensor position in combination with control panels such as the PW-1000 and PW-800.
Specification
| Allowable mass | 14kg |
|---|---|
| stroke | 210mm |
| Drive speed | 13mm/s |
| DC motor | DC24V 0.6A |
| mass | 6kg |
