Manufacturer: MITSUHASHI CORPORATION
Model: KD-920-OH

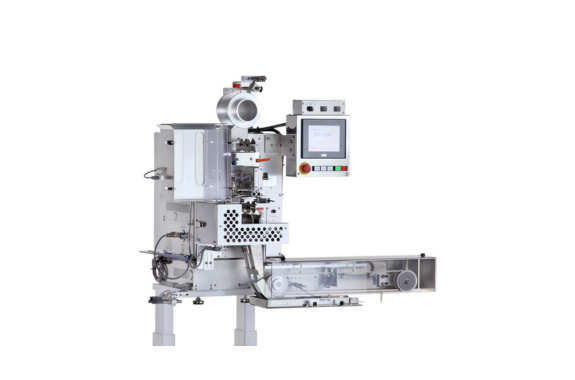

This device automatically cuts continuous pouches (small bags) to a fixed length and feeds them into the packaging machine’s conveyor belt at a consistent speed. It can be used for various types of pouches, including powders, desiccants, oxygen absorbers, and liquids.

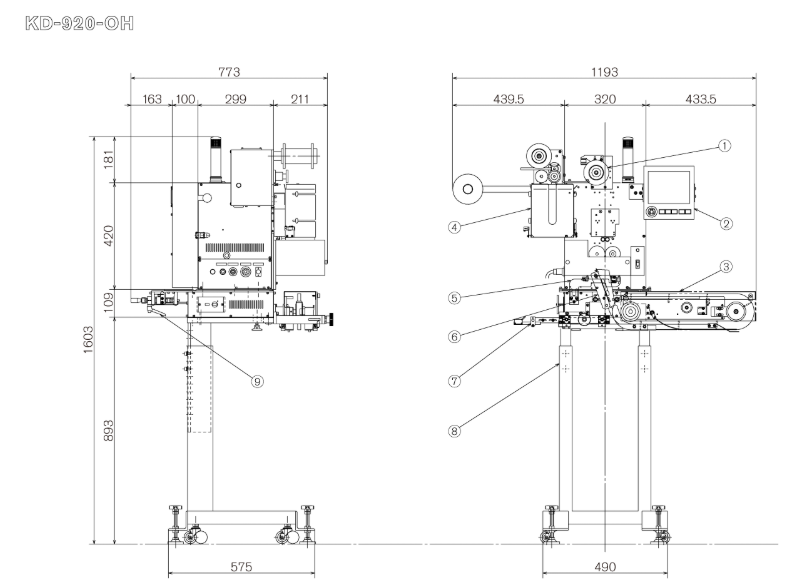

Drawing

① KD-920
② Control panel
③ Fixed-position feeding unit: OH-100
④ Feed unit (optional)
⑤ Mis-cut prevention sensor
⑥ Chute with automatic discharge function (optional)
⑦ Noodle detection unit (optional)
⑧ Frame
⑨ Front and rear sliding unit (optional)

Features

• An overhead-type conveyor with an attachment is used to automatically feed pouches, following the conveyor speed of the packaging machine.
• Even if the conveyor speed of the packaging machine changes, the pouch input position remains constant.
• By using an overhead-type conveyor with an attachment, pouches can be loaded without putting stress on them.
