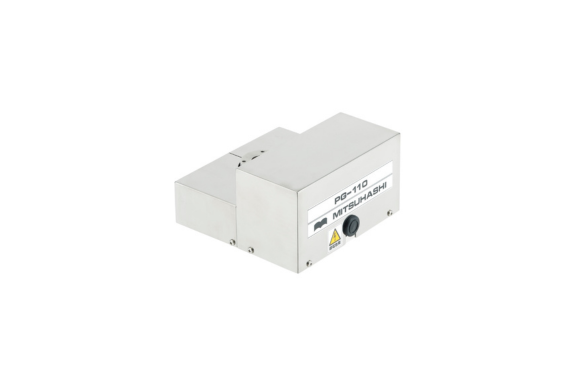

MITSUHASHI PG-110 Small Roll Guide
Manufacturer: MITSUHASHI CORPORATION
Model: PG-110
This is an offset roll guide used for meandering control in the intermediate stages of web transport. Its low profile allows for installation in small spaces.

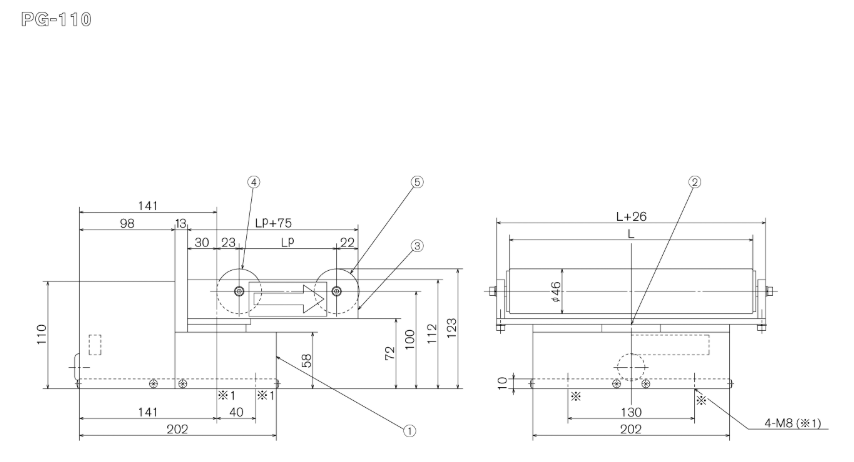

Drawing
① Drive unit
② Pivot stand
③ Roll frame
④ Inlet side roll
⑤ Outlet side roll
L: Roll face length Lp: Roll span
*1: Mounting tap
Features
- It is ideal for position control during the sheet processing line.
- Ideal for materials prone to permanent deformation or tearing.
The roll guide controls the web by twisting it at both the inlet and outlet ends. This minimizes the tension difference between the two edges of the web, making it suitable for controlling webs made of materials prone to permanent deformation or tearing.
Specification
| DC motor | DC24V 0.4A |
|---|---|
| correction speed | 12 mm/s (when roll span is 100 mm) |
| Controlled quantity | ±10mm (when roll span is 100mm) |
| Maximum seat speed | 100m/min |
| Roll surface length | 100-300mm |
| Roll diameter | φ46 (standard) |
| Rollspan | 50-200mm |
