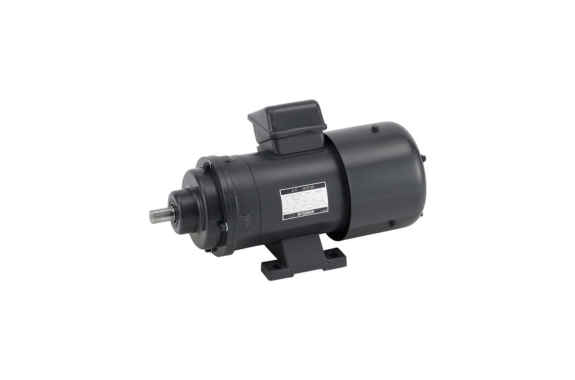

MITSUHASHI CM-402F Control Motor
Manufacturer: MITSUHASHI CORPORATION
Model: CM-402F
This is a motor for controlling meandering. It is used in combination with the PW-1310, etc. Please use this when you design and manufacture the drive mechanism yourself.

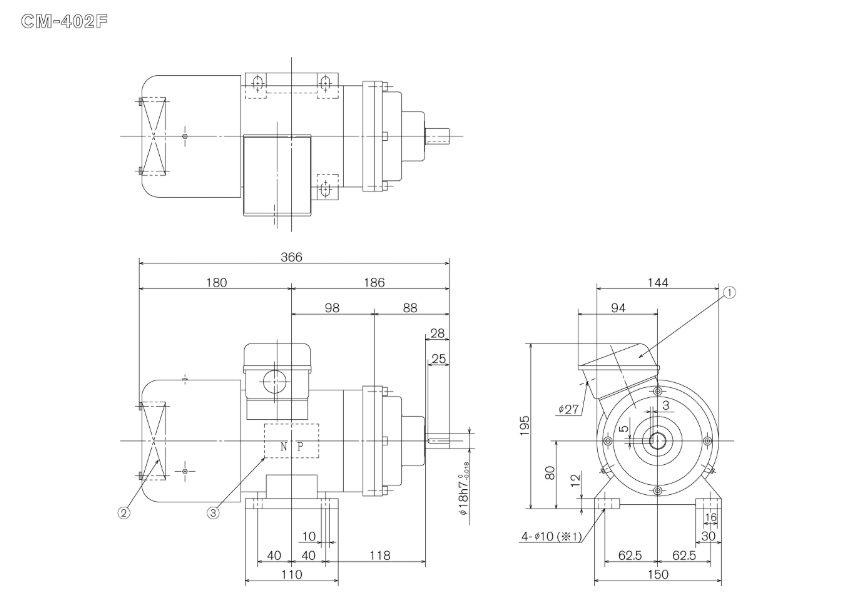

Drawing
① Terminal block (armature: AE, fan: UV)
② Single-phase fan (AC200V 50/60Hz)
③ License plate
*1: Mounting holes (slotted holes)
Features
- It employs a DC motor and is used in combination with control panels, operation panels, and detectors as a drive source for various meandering control applications.
Specification
| kinds | DC machine with reducer |
|---|---|
| field | Permanent magnet |
| Electrical | DC24V 11A |
| Rated Torque | 78.4 N·cm (80 kgf·cm) |
| Rated rotational speed | 100rpm |
| Starting Torque | 274 N·cm (280 kgf·cm) |
| mass | 12kg |
