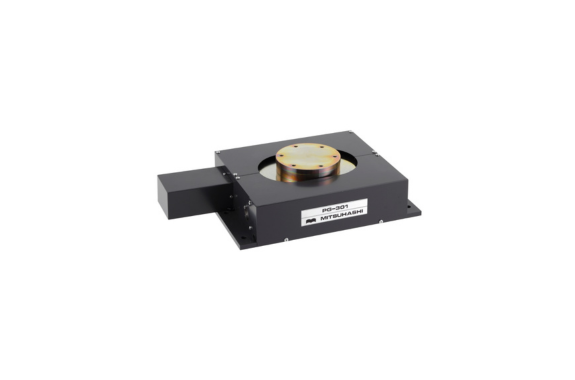

MITSUHASHI PG-301 Large Roll Guide
Manufacturer: MITSUHASHI CORPORATION
Model: PG-301
This is an offset roll guide used for meandering control in the intermediate stages of web transport. It is applicable to webs with a width of 2000 mm or less. It can also be used in web transport lines with high tension.

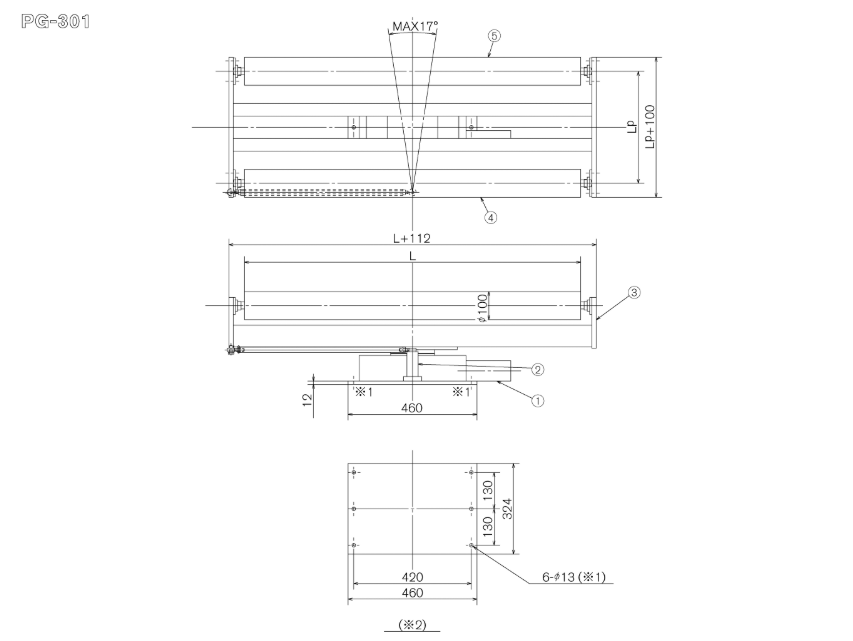

Drawing
① Drive unit
② Pivot stand
③ Roll frame
④ Inlet side roll
⑤ Outlet side roll
L: Roll face length Lp: Roll span
*1: Mounting hole *2: Mounting dimension diagram
Features
- It is ideal for position control during the sheet processing line.
- Ideal for materials prone to permanent deformation or tearing.
The roll guide controls the web by twisting it at both the inlet and outlet ends. This minimizes the tension difference between the two edges of the web, making it suitable for controlling webs made of materials prone to permanent deformation or tearing.
Specification
| DC motor | DC24V 2.0A |
|---|---|
| correction speed | 13 mm/s (when roll span is 900 mm) |
| Controlled quantity | ±50mm (when roll span is 900mm) |
| Maximum seat speed | 350 m/min |
| Roll surface length | 800-2000mm |
| Roll diameter | φ100～150 |
| Rollspan | 300-900mm |
