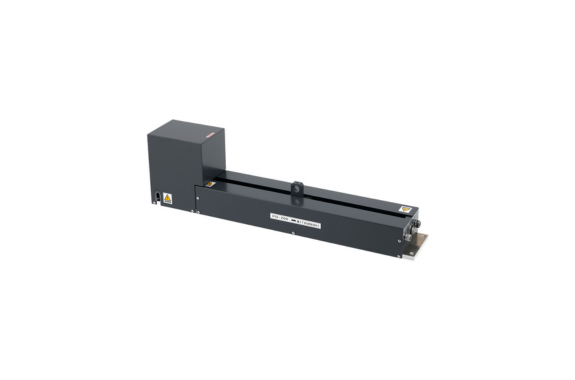

MITSUHASHI PD-200 Detector Movement Actuator
Manufacturer: MITSUHASHI CORPORATION
Model: PD-200
This is an actuator for moving the detector. It is used for bonding control and centering control.

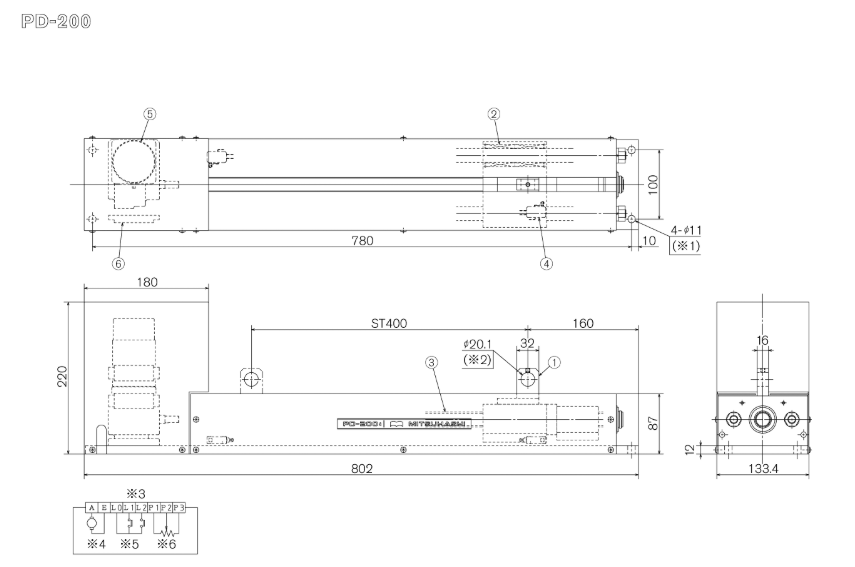

Drawing
① Holder
② Ball bushing
③ Ball screw
④ Limit switch
⑤ DC geared motor
⑥ Terminal block
*1: Mounting hole *2: Detector unit mounting hole *3: Internal connection diagram *4: Motor *5: Limit switch *6: Potentiometer
Features
- Because it is equipped with a potentiometer, positional feedback is possible, allowing for web bonding and centering control.
Specification
| Allowable mass | 35kg |
|---|---|
| stroke | 400mm |
| Drive speed | 13mm/s |
| DC motor | DC24V 1.5A |
| mass | 19kg |
