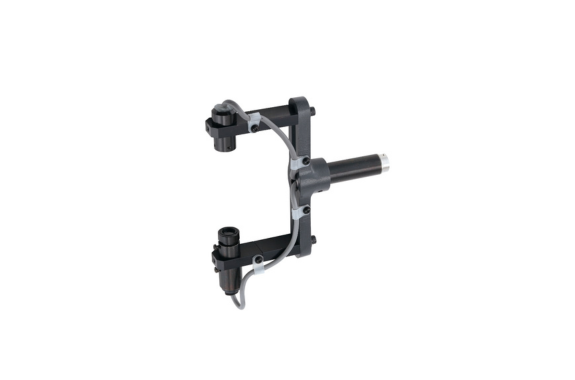

MITSUHASHI PS-800 Transmission Line Detector
Manufacturer: MITSUHASHI CORPORATION
Model: PS-800
This is a photoelectric transmission detector that detects the position of line marks and boundaries printed on transparent webs. It is used in combination with Q-series control panels and drive units to control web meandering. It is suitable when control is required based on the print rather than the web edges.

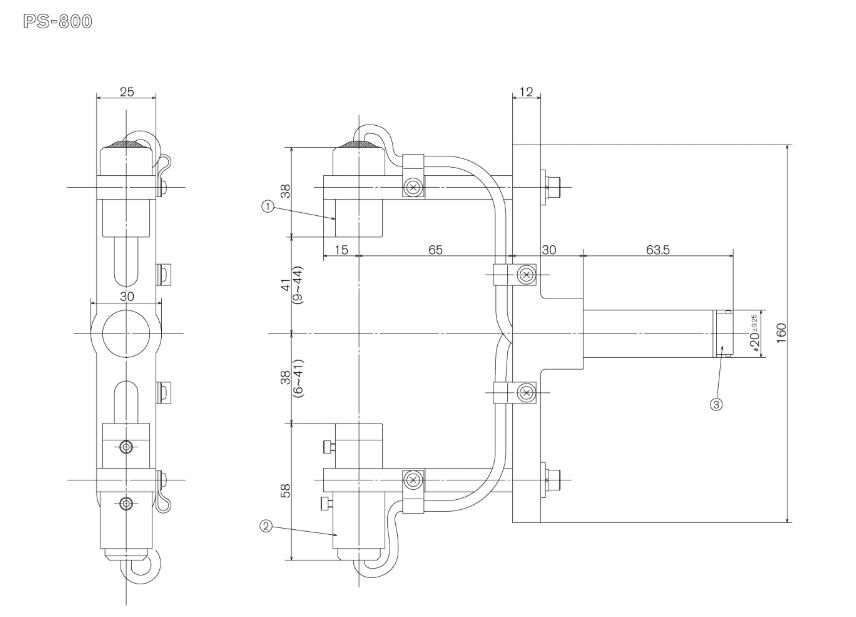

Drawing
① Light receiving unit
② Light emitting unit
③ Connector
Features
- In addition to detecting web edges, it can also detect the location of printed boundaries and line marks on transparent webs.
specification
| Detection method | Photoelectric transmission type, displacement proportional type |
|---|---|
| Detection location | Web edges, transparent web print borders, line marks |
| Detection distance | 15-85mm |
| Detection range | 6mm |
| light source | Tungsten light bulb |
| light-receiving element | silicon photodiode |
| Humidity temperature | 0-50°C (no condensation) |
| weight | 500g |
| Compatible control panel | PW-1000, PWN-1000, PW-1310, PW-2000 |
