MITSUHASHI CORPORATION

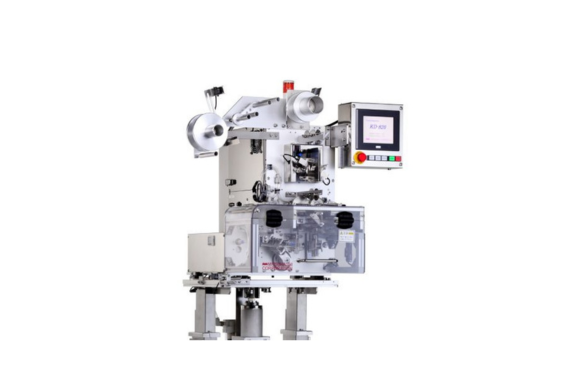

MITSUHASHI KD-820 And LV-200 Suction-Type Pouch Dispenser
Manufacturer: MITSUHASHI CORPORATION
Model: KD-820 And LV-200
This device cuts continuous pouches (small bags) to a fixed length one by one and dispenses the absorbed pouches at high speed and without leakage into designated positions on a conveyor line. It can be used for various types of pouches, including powders, desiccants, oxygen absorbers, and liquids.

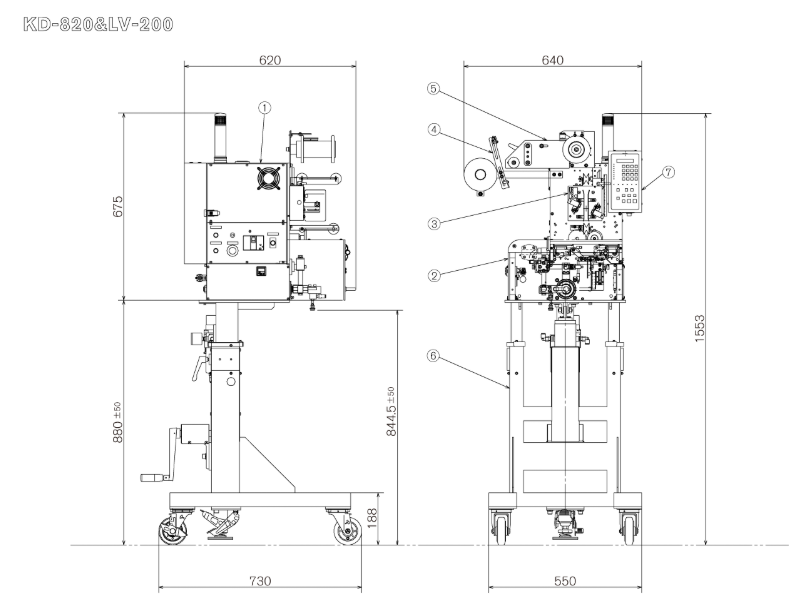

Drawing
① KD-820
② High-speed suction unit: LV-200
③ Non-contact pitch unit: PU-3 (optional)
④ Termination detection unit (optional)
⑤ Fold correction unit (optional)
⑥ Up/down lifting frame (optional)
⑦ Operation panel

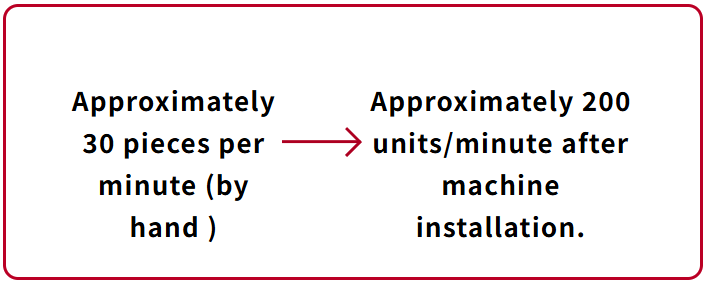

Labor-saving effect
Features
- Input capacity: 200 units/minute
- By employing an AC servo motor drive, the pouch is quietly and precisely inserted into its designated position at the right time.
- Because the pouch is cut at the same time as it is adsorbed, it is always inserted in the same position.
- Ideal for perpendicular loading onto packaging machine conveyors and for adhesive loading.
- When combined with a hot melt adhesive dispenser or the TM-200 (double-sided tape application device), it can be accurately applied to packaging films and other materials.
Specification
| Input capacity | 200 pieces/minute (maximum) <when bag length is 70mm> *Capacity decreases as the bag length pitch increases. *Maximum capacity also varies depending on the packaging material and contents. |
|---|---|
| Pouch packaging | Width 20-80mm, Length 25-90mm, Thickness 1-10mm |
| power supply | 3-phase AC200V 50/60Hz 1.5kVA |
| mass | Approximately 46 kg |
| Air source | 0.5 MPa 100 L/min (ANR) Dry Air |
